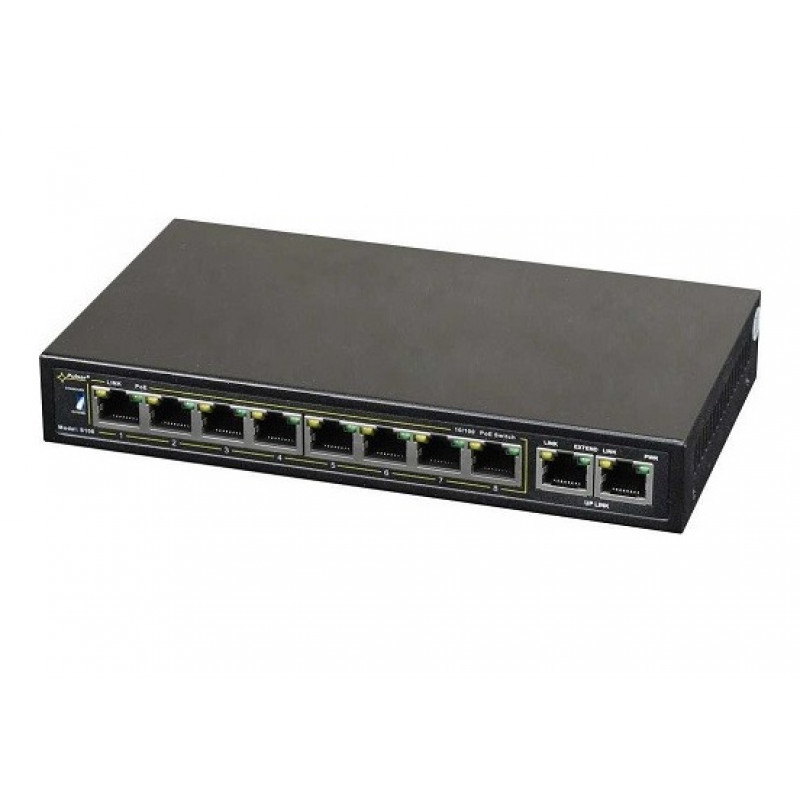

Fermax, 1587, SWITCH POE 8 PORTS

Fermax, 1587, SWITCH POE 8 PORTS

Automatic detection of any devices powered in the standard is enabled at the 1 – 8 ports of the switch. The UP LINK ports are used for connection of another network.The LEDs at the front panel indicate the operation status.The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or router.

Specifications:

• Ports: 10 10/100Mb/s ports (8 x PoE + 2 x UP LINK) with connection speed autonegotiation and MDI/MDIX. Auto Cross
• PoE power supply: IEEE 802.3af/at (1÷8 ports), 52 V DC / 30 W at each port *
• Long Range mode: Long Range, VLAN
• Protocols: IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
• Bandwidth: 1,6Gbps
• Transmission method: StoreandForward
• Optical indication of operation:
• Switch power supply
• Link/Act
• PoE status
• Power supply: ~100240 V; 50/60 Hz; 1,3 A / 52 VDC; 2,3 A external power supply is included.
• Operating conditions:
• Temperature 10°C ÷ 40°C,
• Relative humidity 5% 90%, no condensation
• Dimensions: W=190, H=28, D=105 [+/ 2mm]
• Net/gross weight: 1,2/1,4kg
• Protection class: EN 609501:2007
• Storage temperature: 20°C ÷ 60°C.
