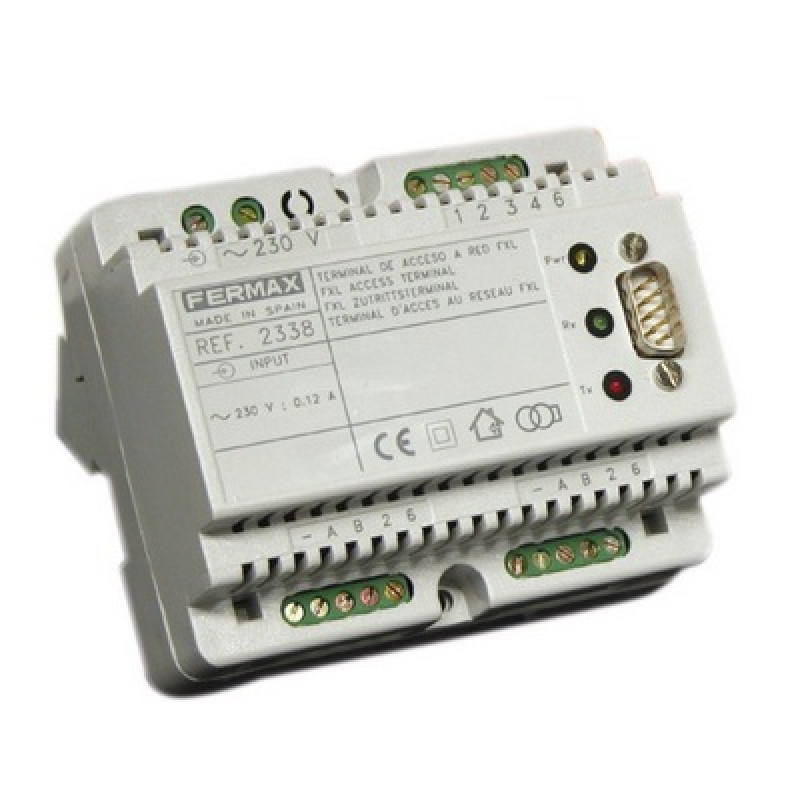

Fermax, 2338, RS-232 to RS-485 PC Adaptor
- Brand:Fermax
- Product Code:2338
- Availability:Please Call or Email Us to Check Availability
Fermax, 2338, RS-232 to RS-485 PC Adaptor
Interface that enables local connection between the PC (serial port) and the installation, to configure, control and manage the facilities.Used for maintenance of facilities that have the PC permanently connected.
DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.
- PC connection:. Serial port(RS-232), max. 30 metres (3 metre cable included).
- Installation connection: RS-485 (twisted pair), max. 1000 metres.
Specification:
- DIN 6 dimensions: 105x 90 mm x60 mm
- Power supply: 12 Vdc
- Weight: 0,5000344 kg
For more details, please refer with our attached datasheet.
