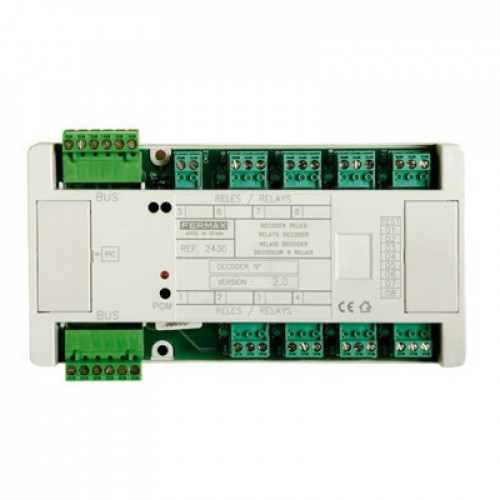

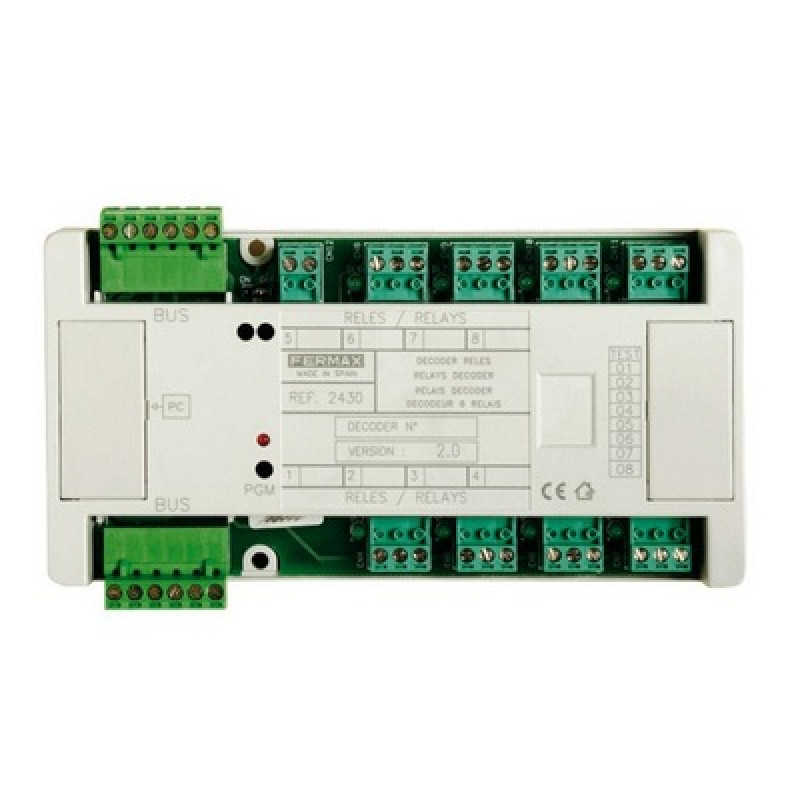

Fermax, 2430, 8 MDS Relay Decoder
- Brand:Fermax
- Product Code:2430
- Availability:Please Call or Email Us to Check Availability
Fermax, 2430, 8 MDS Relay Decoder
This decoder is designed to work only with MDS-Digital and CAC systems.
It has 8 relay outputs, which may be configured as bistable (relay switching at every activation) or timed (closing each relay for a time set between 1 and 255 seconds). In “timed mode” a counter starts to count from the moment the relay is activated, and is deactivated when the set time is up.
LED status indicator:
OFF: the decoder has not yet been programmed
ON: the decoder is in programming mode
BLINKING: the decoder has been coded and is working
Specification:
- Power supply: 12 Vdc
- Weight:0,300 kg
- Size: 6.5x18x10 cm
For more details, please refer with our attached datasheet.
