Fermax, 2902, Electric Strike MOD.410A MAX

Fermax, 2902, Electric Strike MOD.410A MAX

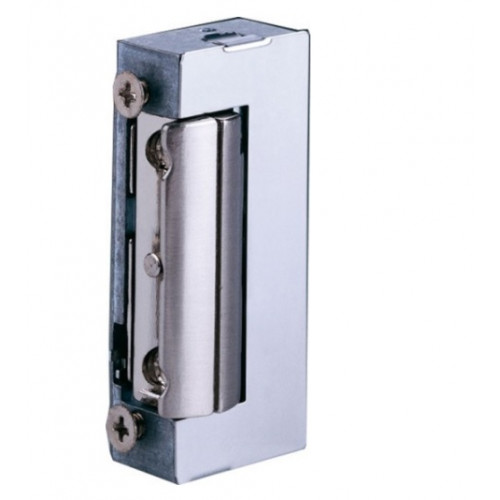

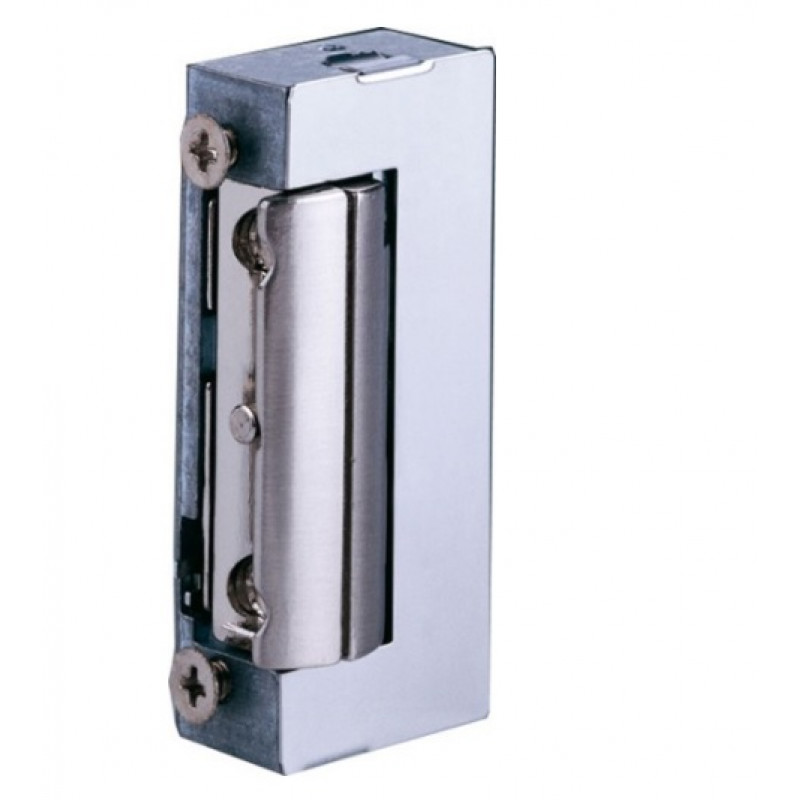

The 2902 is a Electric Strike MOD.410A MAX.

Reversible (DIN Right or DIN Left) :

Allows opening on the right as on the left.
Symmetrical :
Allows you to change hands while maintaining body symmetry.

DIN STANDARD :

The DIN STANDARD defines the direction of opening of the door and designates the type of strike installed.
Observation of the door on the side where the hinges are visible:
If the hinges are on the left of the observer, this is a DIN Left strike.
If the hinges are on the right of the observer, it is a DIN Right strike.
There are several strike mechanisms, depending on the TYPE OF OPERATION required. TIPO A_AUTOMATIQUE 12 Vac:
A (Automatic operation and activation at 12 Vac): the strike is released automatically by receiving a voltage pulse of 12 Vac. The strike locks again once there is no more tension and the door opens and closes mechanically. For a good installation, the automatic nipple must undergo a pressure of 3 mm under the effect of the sliding of the door once it is closed.

Specifications:

• Consumption:
  • N, A 12Vac: 980mA
  • N-412 12Vdc: 400mA.
  • N-512 12Vdc: 200mA.

Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
