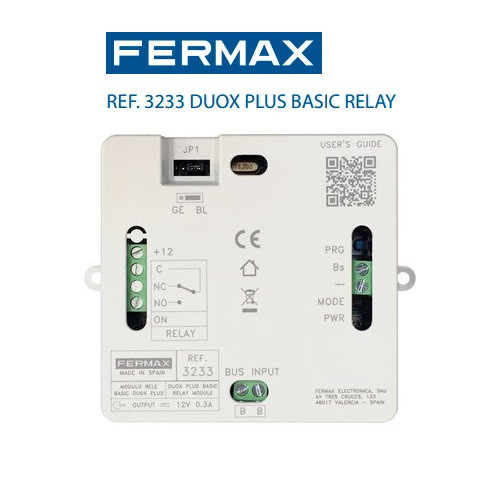

FERMAX 3233, DUOX PLUS BASIC RELAY

FERMAX 3233, DUOX PLUS BASIC RELAY

• This relay allows the most basic and common functions to be carried out: opening a door, activating a light, etc.
• For more advanced functions not available in this relay, FERMAX has the DUOX PLUS relay ref. 3267.
• Programming is very simple, even if the factory default parameters are already the ones desired by the installer, you will not even have to program anything. Just connect and that's it.

Using jumper JP1, the relay can be programmed as:

• Block Relay (Default value: block = 00): Only the devices in that BLOCK can activate the relay (outdoor panels, guard unit or monitors / telephones)
• General Entrance Relay: All users of the installation can activate the relay.

The relay can be programmed to activate with the following actions :

• Door opening.
• F1 (default activation parameter).
• F2
• Call from the panel or concierge.

The relay activation time can also be programmed: [1 s, 99 s]. The factory default is 4s.

CONNECTIONS

• Bus Input: to connect the DUOX PLUS bus.
• Bs, -: for the connection of a hall exit button to open the door.
• +12: 12 Vdc auxiliary output (max: 300 mA).
• C, No, NC: Potential free relay contacts. 250 Vac / 30 Vdc - 3A. Max.
• ON: LED indicating that the relay has been activated.

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
