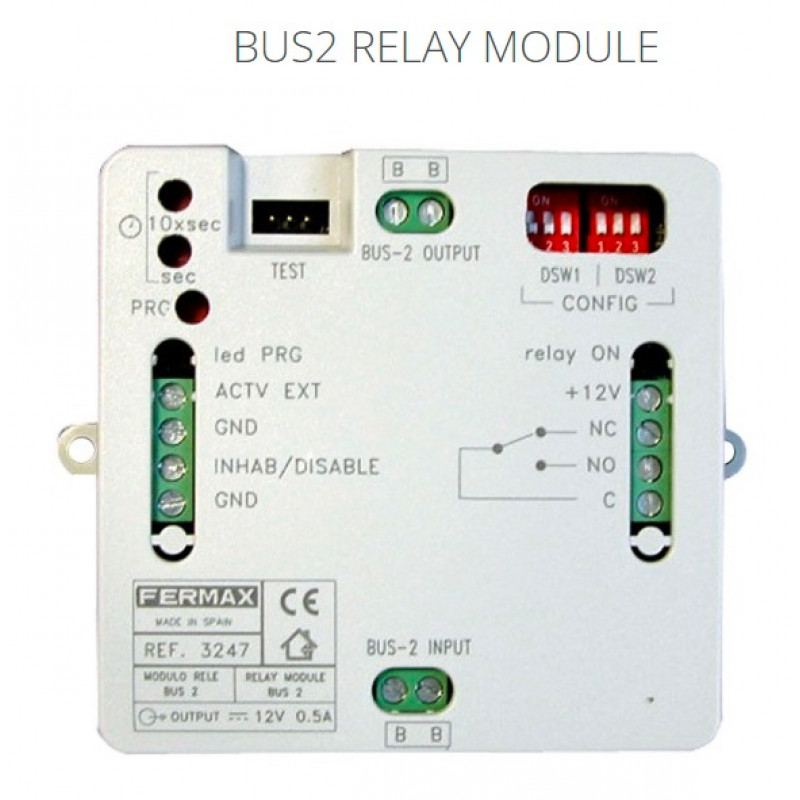

FERMAX 3247, BUS2 RELAY MODULE

FERMAX 3247, BUS2 RELAY MODULE

The BUS2 Relay lets you have potential free relay in BUS2 installations, with various configurable activation and operating modes:
- relay activation by commands generated from the home terminals and/or outdoor panels.
- outside activation: by pushbuttons, additional outside switches, etc.
The BUS2 relay is installed in an intermediate point of the bus with no need for additional wiring.

BUS 2 system: simplified installation system, minimum wiring and powerful features, guaranteeing maximum audio/video signal quality at all points of the installation. Maximum immunity to outside interference.Lets you manage buildings of up to 199 homes and 2 entrance accesses.Maximum distance from first access to last home: 250 m.BUS2 AMPLIFIER comes complete with built-in voice synthesizer. When the door release is activated a message is heard: “Door open, please close after entering”.TV camera included in BUS2 video entry panels is COLOUR as standard issue.Up to 2 terminals (2 telephones, 2 monitors or 1 telephone + 1 monitor) can be installed in each home.The home terminals require simple programming, done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor). Communication is private.Wiring: Audio/Video: 2-wire bus without polarity. We recommend CAT2 twisted pair cable for maximum distances and homes capacity.Maximum distance from first access to last home: 250 m.

Power supply: 24 Vdc
