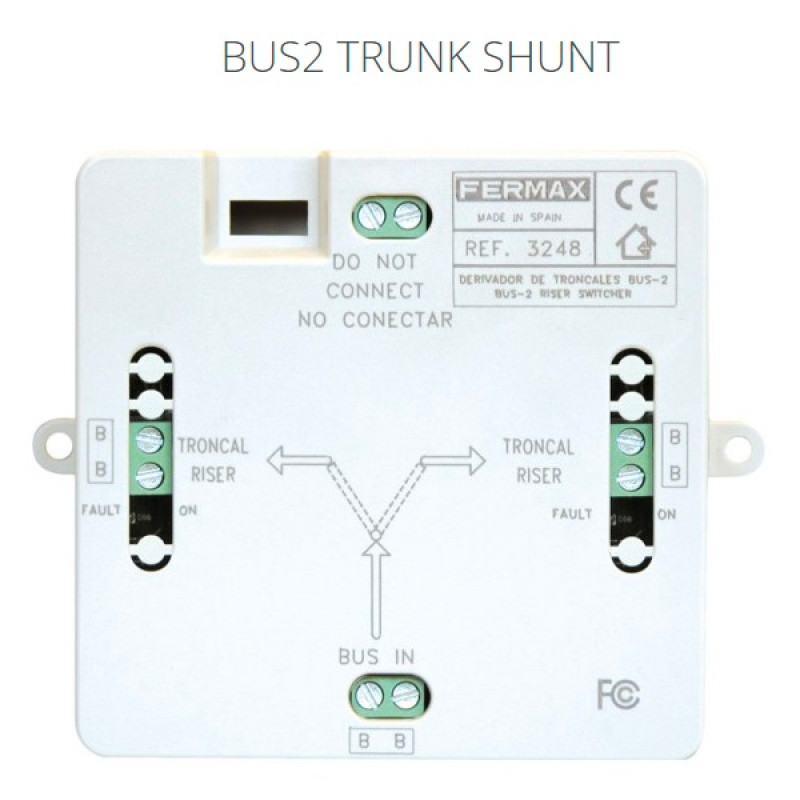

FERMAX 3248, BUS2 TRUNK SHUNT

DESCRIPTION

Device connects the outdoor panel where the active terminal is (telephone/monitor), isolating the rest of the installation trunks.

Small size allows installation in electrical cabinets. Can be screwed/bolted directly onto the wall.

BUS 2 system: simplified installation system, minimum wiring and powerful features, guaranteeing maximum audio/video signal quality at all points of the installation. Maximum immunity to outside interference.Lets you manage buildings of up to 199 homes and 2 entrance accesses.Maximum distance from first access to last home: 250 m.BUS2 AMPLIFIER comes complete with built-in voice synthesizer. When the door release is activated a message is heard: “Door open, please close after entering”.TV camera included in BUS2 video entry panels is COLOUR as standard issue.Up to 2 terminals (2 telephones, 2 monitors or 1 telephone + 1 monitor) can be installed in each home.The home terminals require simple programming, done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor). Communication is private.Wiring: Audio/Video: 2-wire bus without polarity. We recommend CAT2 twisted pair cable for maximum distances and homes capacity.Maximum distance from first access to last home: 250 m.
