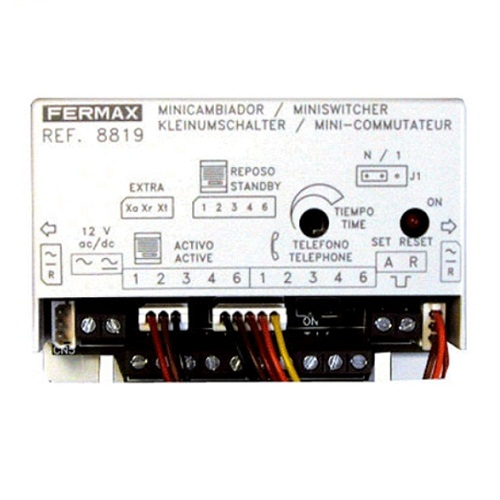

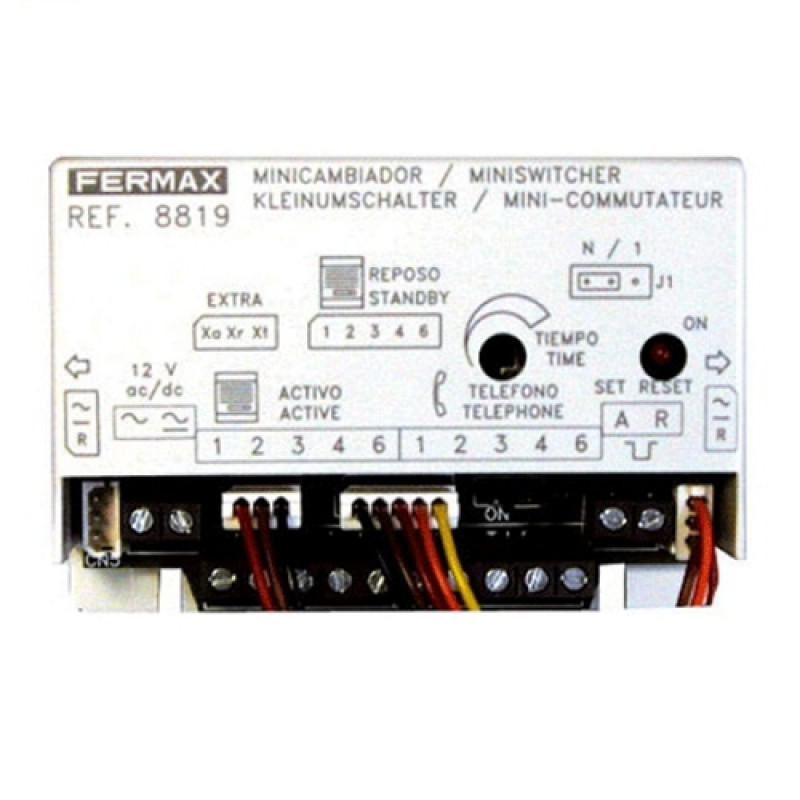

Fermax, 8819, 1/W Audio Automatic Switcher

Fermax, 8819, 1/W Audio Automatic Switcher

Switchers are needed in facilities with more than one access. They are used to connect the home phone or monitor with the panel the call is being made from. This switcher was designed for 1-line door entry panels, (4+n Analogue System).

Maximum 5 accesses. 1 switcher is required for each door entry access point. In installations with 2 accesses, only 1 switcher is needed.

Select the call source, allowing communication only with the panel the call is made from and triggering the corresponding door release.

Small size allows installation in electrical cabinets. Can be flush-fit in standard boxes 10x10 cm. With adhesive strips for fixing, or may be screwed directly onto the wall.

Technical Specifications:

• Power supply: 12Vac/12Vdc
• Consumption: 40 mA.
• Timing approximately 90 seconds.
• Dimensions: 62x85x20 mm (height-width-depth).
• Weight: 0,1501 kg
• Size of product when packed: 6x13,5x8 cm
