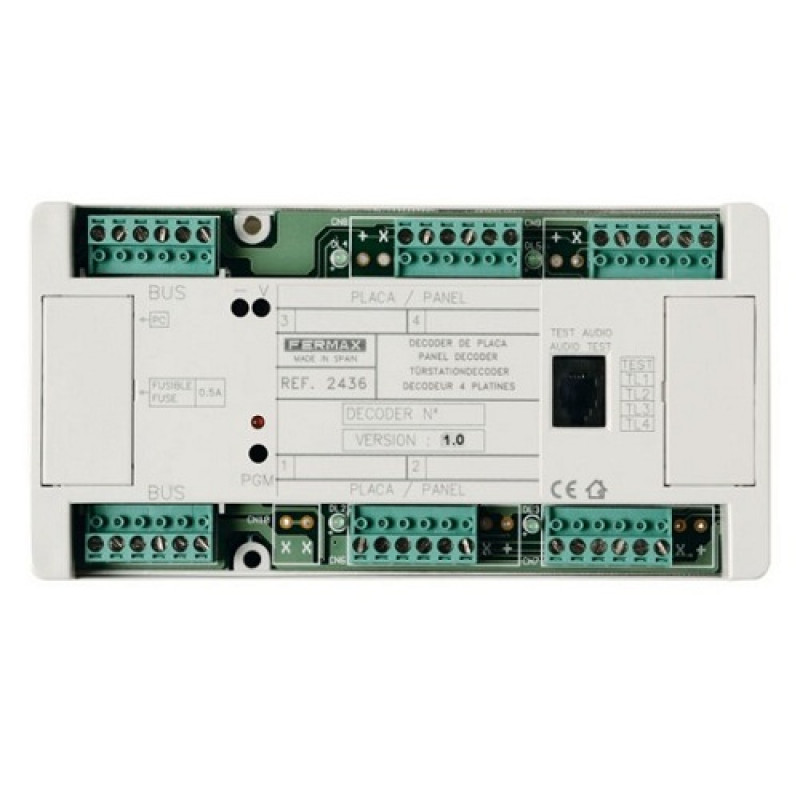

Fermax, 2436, 4 Way Panel MDS Decoder
- Brand:Fermax
- Product Code:2436
- Availability:Please Call or Email Us to Check Availability
Fermax, 2436, 4 Way Panel MDS Decoder
Let you connect up to 4 Panels (1 or 2 line 4+N system panels). Each of the decoder outputs is programmed with a 3 digit MDS address. This address identifies the house terminal connected to each output, differentiating it from the rest of the terminals in the installation. When a call is made from the Guard Unit, the MDS address corresponding to the house dialled is generated, so that only the decoder with an output programmed with the MDS address created will enable communication. Panels connected to the decoder have audio communication privacy with respect to the rest of the terminals.
DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.
Technical Specification:
- DIN 10 dimensions: 175 x 90 mm x 60 mm
Power supply:
- Audio: 12 Vdc
- Video: 18 Vdc
For more details, please refer with our attached datasheet.
Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
