Fermax, 9703, VDS Marine Colour Video Amplifier
- Brand:Fermax
- Product Code:9703
- Availability:Please Call or Email Us to Check Availability

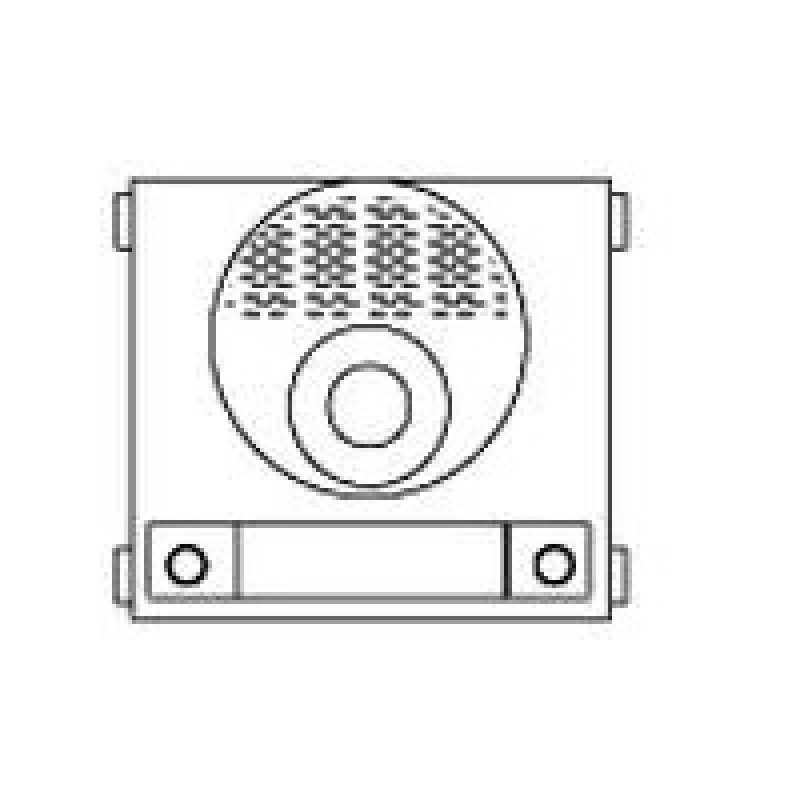

Fermax, 9703, VDS Marine Colour Video Amplifier
VIDEO Amplifier module of spare parts for inclusion in Marine electronic door entry panels.
Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc. Incorporates COLOUR camera with built-in lighting and pan&tilt regulation system to adjust the camera lens.
Technical Specifications:
Camera SPECS:
- Image Output: 1.1Vp-p/75Ω
- Resolution: 350TV Lines
- Pixels: PAL 500(H)x582(V) 290Kp / NTSC 510(H)x492(V) 250Kp
- Viewing angle: 90º
- Light sensitivity: 0.1 Lux
- Pan&Tilt: 10º
Consumption:
- Standby: 40 mA
- Power supply: 18 Vdc
- Active audio: 250 mA
- Lighting per lamp: 70 mA
IPK Panel-437:
- Audio capacity home-outdoor panel: 2W
- Audio capacity outdoor panel-home: 0.15W
- Two-way volume control
- Operating temperature: -10 to 60 ºC
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
