Fermax, 29001, Timer Relay

Fermax, 29001, Timer Relay

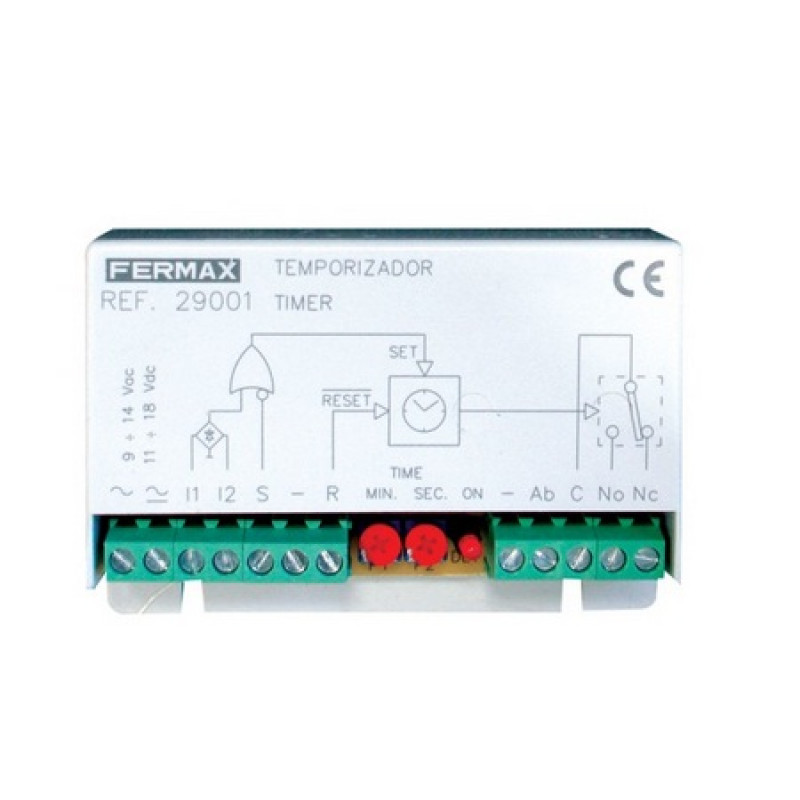

The timer has the following connections and controls: -

• PDT relay to activate the external device (C, No, Nc).
• Potentiometers to adjust the activation time: Minute adjusted potentiometer (P1) and Second adjusted potentiometer (P2).
• Timed Activation Button Connection (S,-): activates the timer relay during the programmed time. - Button connection for Reset (R,-)

Necessary to activate an external device (courtesy light, second door, etc) from the corresponding button (additional button) located in the phone or monitor for a set period (timing).

Specification:

• Dimensions: 62x85x20 mm (height-width-depth)

For more details, please refer with our attached datasheet.
