Fermax, 4545, Dooe Entry System from the Telephone Interface

Fermax, 4545, Dooe Entry System from the Telephone Interface

Controls the door entry system from the home telephone and diverts calls from the door to a mobile phone when not at home.

The telephone interface is the perfect complement for the door entry system. Installed in the home, it allows communication and door opening from any landline or wireless telephone.

It also works as a telephone dialler, so that it is possible to divert the call from the entry system through the telephone line to a programmed telephone number.

This application is very useful for private homes when the owner is away.

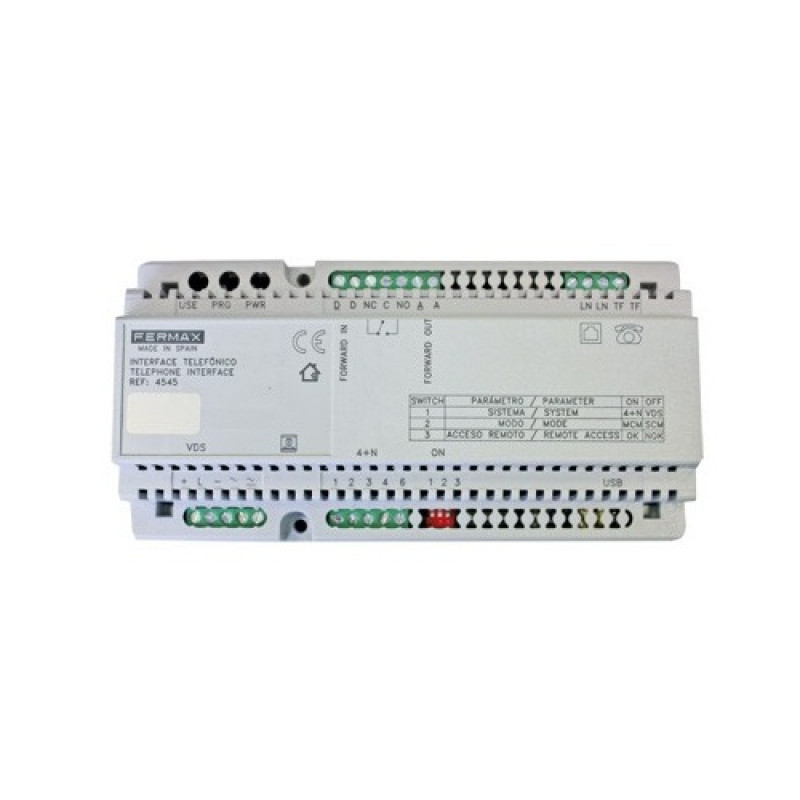

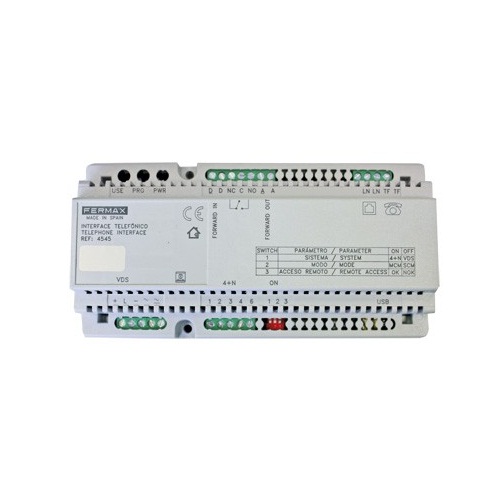

DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.

The key feature of this Telephone Interface is that a single reference works for analogic 4+N and VDS installations.

Key Features:

• Audio level settings from the phone.
• The chance of changing the conversation mode to half-duplex or simplex mode dynamically.
• Remote access from an external line (protected by a PIN code), to all functions available to internal telephones: activation of the relay, programming, connection to the street panel, door open....etc.
• Call forward. If there is no response from the internal telephones, it is forwarded to a second telephone when the first one does not answer.
• Configurable time parameters.
• Compatible with advanced telephone services (the use of * and #).
• The use of pause in the external call number.
• External signal of forward mode (open collector output).

For more details, please refer with our attached datasheet.
