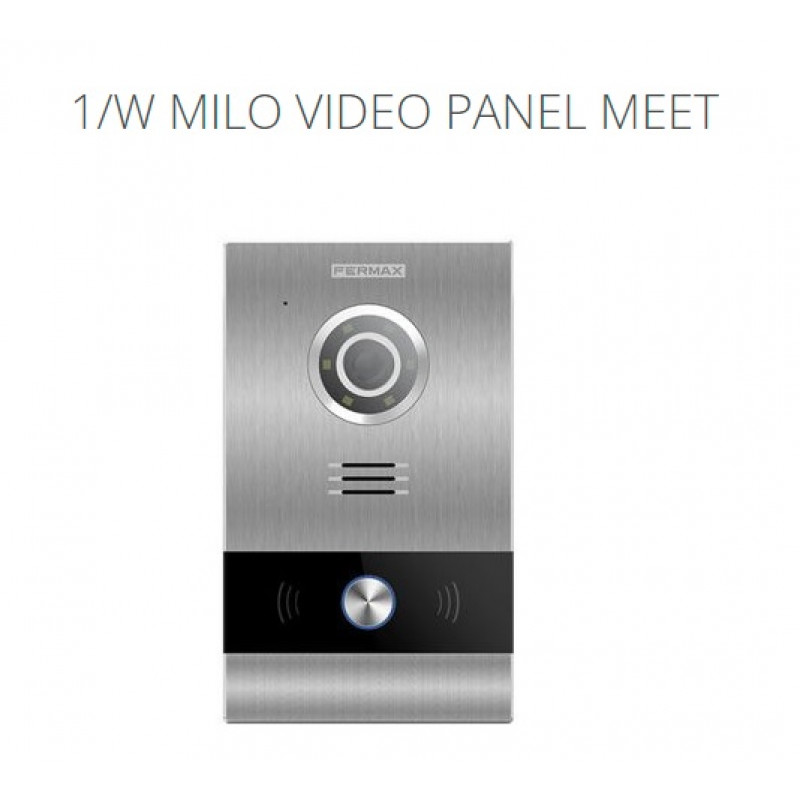

FERMAX 953303, 1/W MILO VIDEO PANEL BLACK MEET
- Brand:Fermax
- Product Code:FER953303
- Availability:Please Call or Email Us to Check Availability
FERMAX 953303, 1/W MILO VIDEO PANEL BLACK MEET
1/W VIDEO MEET PANEL is presented in two different versions: one version with IC reader, the other one without reader.
FEATURES
• Aluminum Profile
• High Resistance Tempered Glass
• High Definition Colour Camera
• Low Power Consumption
• Wide Range Working Environment
• Linux Modular Structure
• Access Control Integrated (Only for Panel with Reader)
• Available In 10 Languages
• Remote Firmware Update
FUNCTIONS
CALL TENANT
Visitors are able to call the desired tenant from 1L panel. Alternatively, it can be configured to call one guard unit acting as an emergency call panel.
REFERENCES
Ref. 9533 1/W VIDEO MEET PANEL
Ref. 9534 1/W VIDEO MEET PANEL (+ PROXIMITY)
Ref. 9543 MEET PANEL FLUSH BOX – S
TECHNICAL SPECIFICATIONS
System:
• CPU: ARM Cortex-A7 1.2GHz
• FLASH: 128M
• SDRAM: 64M
Audio Features:
• G.711 protocol
• Audio level 17.7 dB
Camera:
• 1/3” CMOS Color
• 90o visual angle: Vertical 72º, Horizontal 54º
• 1.3 Mega Pixels
• Minimum illumination 0.5 LUX
• AWB
LED:
• White LED
• LM 60 mA Min. 24, Typ. 26
• View Angle 2θ1/2: 120
Power Consumption:
• On standby: 125mA
• Working: 250mA
Working voltage:
• 12 VDC
Connectivity:
• Ethernet RJ-45 Connector
• Exit button and door sensor connection
• NO, C, NC: Door lock release connection
• Built in web server for configuration and remote management
Working Environment:
• Temperature: -10 oC – 70 oC
• Humidity: 20 – 80% (Non-condensing)
• IP 54
• IK 07
CONNECTIONS
RJ-45 10/100 Base -T Ethernet
+, -, : 12 Vdc power supply input
BS, -, NA, SP: Exit button and door sensor connection
NO, C, NC: Door lock release connection
485+, 485-: RS485 serial port for spare
