Fermax, 9545, Meet Lift Control Gateway

Fermax, 9545, Meet Lift Control Gateway

The lift control gateway is a device between building system and lift system. five modes are defined in Meet lift control
system. They are:

• The house owner calls lift up
• The house owner calls lift down
• The lift be authorized to the house owner’s floor
• The house owner open door which visitor calling.
• Query the lifts status and display on monitor.

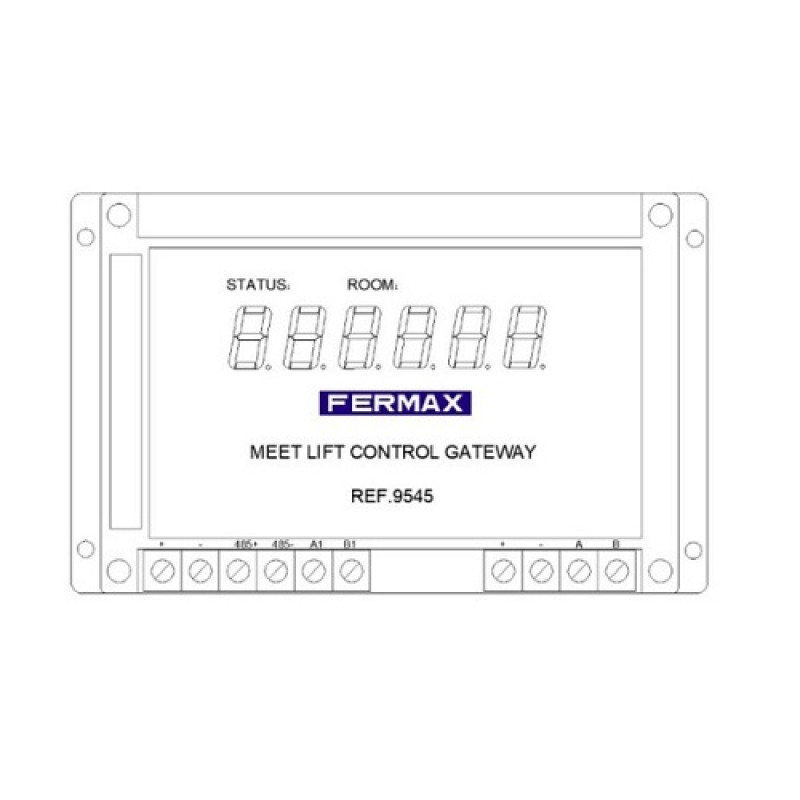

This device have 6 digital leds on the cover. It can display the COMMAND information and the STATUS + ROOM information of the house owner.
If apply F01616 (RELAY DECODER 10 E), this device should be configured firstly.
Each of F01616’s NO/NC relay output is assigned to one floor, and all these information are save as an Excel file.
There is a configuration tooling, transfer the excel file into this device.

Speciifcation:

Power Consumption:

• On standby: 60mA
• Working: 110mA
• Working voltage: 12 Vdc

Working Environment:

• Temperature: -40 oC – 55 oC
• Humidity: 10 – 93% (Non-condensing)
• Dimension : 145×90×45mm
