FERMAX 3443, VEO TELEPHONE HANDSET W/INDUCT.LOOP
- Brand:Fermax
- Product Code:FER3443
- Availability:Please Call or Email Us to Check Availability
FERMAX 3443, VEO TELEPHONE HANDSET W/INDUCT.LOOP
DESCRIPTION

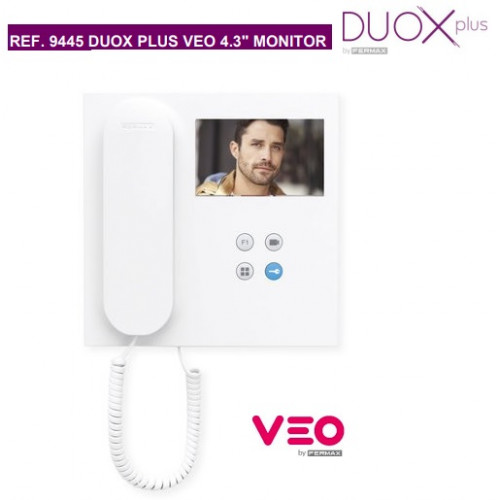

The VEO monitor is made of high-impact ABS plastic. Texturized finish for easy cleaning and ultraviolet protection to get more resistance to the light. VEO incorporates a 4,3” (16:9) panoramic color TFT screen. Its unique handset design incorporating a magnet enables the user to put it back into position correctly when the call is finished. Its balanced design of pure lines is distinguishing, modern and minimal. VEO integrates in the ambience.
When a call is received, the image appears automatically. When the handset is picked up a conversation with the visitor can take place. The image is de-activated automatically after 90 seconds, or when the handset is put back in position. To open the door, press the button with a key.
TECHNICAL SPECIFICATIONS
GENERAL CHARACTERISTICS
Technology: DUOX PLUS (non-polarised 2 wire full digital system)
Audio/Video system: Audio/Video Color
Set-up (Installation): Surface mounted (order connector ref. 9447 separately)
Desktop support: Yes (ref. 9410)
Handset with magnet to facilitate the hang up: Yes
Induction loop available: Yes (replace handset with ref. 3443 or order monitor ref. 9455 which already includes the induction loop))
Screen dimensions: 4,3” (Panoramic 16:9)
Screen resolution (H x V): 480 x 272
Color of the product: Matt white
Number of pushbuttons: 4
Kind of pushbuttons: Mechanical (silicone)
Number of leds for lighted indications: 1 (red with 3 states: always ON, slow/fast blinking)
PROGRAMMING OF THE TERMINAL ADDRESS
From the terminal: From the OSD menu
From the outdoor panel or guard unit: Yes
From the outdoor panel throughout the apartment door bell: Yes
FEATURES
Automatic picture capture when the visitor calls (PHOTOCALLER): Yes (1 photo/call, until 150 photos, 368 x 288 pixels). This feature can be enabled by the user. Disabled by default.
Guard unit call: Yes (by means of the door release button)
Auto-on: Yes (with 3 outdoor panels/cameras)
OSD menu: Yes
Additional function F1: Yes (Button F1 sends a negative and/or command)
Additional function F2: Yes (it only sends command, no negative)
Apartment door bell differentiated from the outdoor panel: Yes
Connection for additional devices (call extension, light/buzzer activator, etc.): Yes (ref. 2040, ref. 2438, ref. 3267)
Additional terminals on the same address: Yes, max. 2 additional terminals (additional power supply can be required)
Doormatic (automatic door release for offices, etc.): No
ADJUSTMENTS
Date and time: Yes
Ring tones selection: Yes (5). Configurable for Block Panel 0, Block Panel 1, General Entrace Panel 0 and Concierge unit.
Call volume control: Yes (10 levels by OSD menu)
Do-not-disturb mode: Yes (by OSD menu) + Red led indication
Audio volume control: Yes (10 levels by OSD menu)
Brightness, color and contrast control: Yes (by OSD menu)
TECHNICAL FEATURES:
- Product dimensions (width x height x depth) mm: 200 x 200 x 23 (44 including handset)
- Time to answer or open the door since the call is done: 30 s.
- Conversation time: 90 s.
- Conversation privacy: Yes
- Voltage: 18-24 Vdc
- Maximum consumption: 5.2 W
- Standby consumption: 0.8 W
- Working temperature (ºC, ºF), Humidity: [-5ºC, +40ºC][23ºF, 104ºF], [0%, 90%]
- Line adaptor included in the terminal: Yes (A, C, default position OFF)
- Connections: Bin, Bin, Bout, Bout, -, A+, F1, T
- Size of product when packed: 5.1x22.2x20.7 cm
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
