FERMAX 5619, iLOFT SURFACE PURE MONITOR BUS2
- Brand:Fermax
- Product Code:FER5619
- Availability:Please Call or Email Us to Check Availability

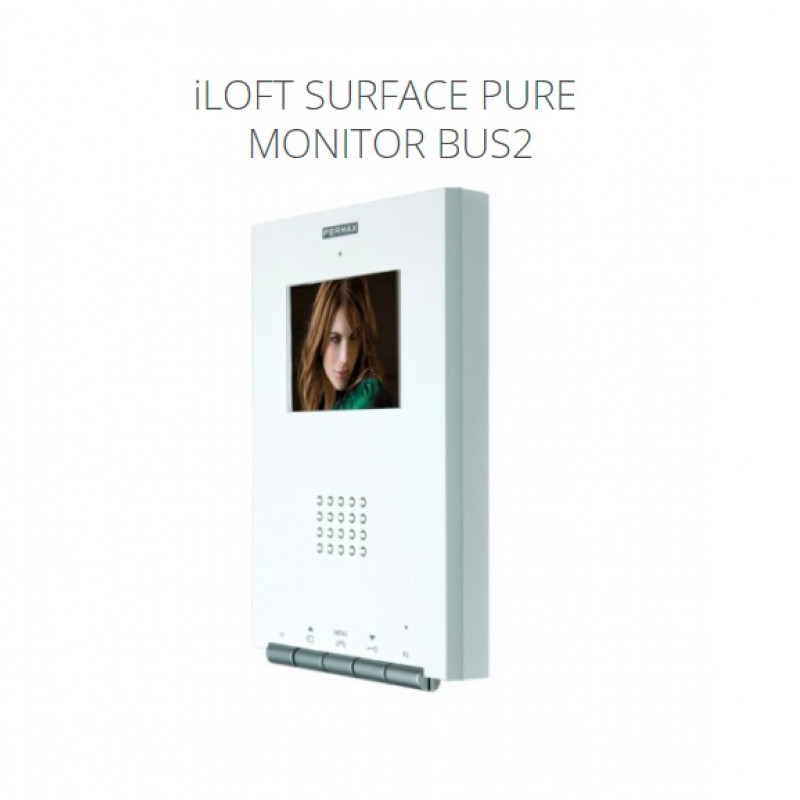

FERMAX 5619, iLOFT SURFACE PURE MONITOR BUS2
DESCRIPTION
Video door entry COLOUR monitor. TFT screen 3.5".
Installed in homes, lets you communicate with the outside panel, open the door and see the visitor on the built-in screen .
The prestigious designers’ association ADI-FAD awarded the iLOFT the “Delta Selection 2007” seal of approval, acknowledging its innovative value, conceptual renovation, formal elaboration and manufacturing quality. This monitor will mean an important growth in top of the range home projects.
New materials. Lightweight. Subtle.
Pure lines. A silhouette suspended on the wall, faintly outlined: iLoft, the most innovative FERMAX video door entry system. Fermax’s proposal for the new digital home, a monitor that fits in with today’s surroundings. iLoft achieves the perfect balance between the functional needs for security and communication between the home and the access to the building, and elegance and integration with the new indoor architecture.
Compact. Extra-flat line equipment, where the quality and care of the materials and the simplicity of lines are united to provide an architectural, minimalist and subtle design.
Colour video door entry system including 3.5’’ TFT screen and hands-free operation.
BUS 2 system: simplified installation system, minimum wiring and powerful features, guaranteeing maximum audio/video signal quality at all points of the installation. Maximum immunity to outside interference.Lets you manage buildings of up to 199 homes and 2 entrance accesses.Maximum distance from first access to last home: 250 m.BUS2 AMPLIFIER comes complete with built-in voice synthesizer. When the door release is activated a message is heard: “Door open, please close after entering”.TV camera included in BUS2 video entry panels is COLOUR as standard issue.Up to 2 terminals (2 telephones, 2 monitors or 1 telephone + 1 monitor) can be installed in each home.The home terminals require simple programming, done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor). Communication is private.Wiring: Audio/Video: 2-wire bus without polarity. We recommend CAT2 twisted pair cable for maximum distances and homes capacity.Maximum distance from first access to last home: 250 m.
TECHNICAL SPECIFICATIONS
Screen TFT 3.5".
Resolution: 480 (H) x 234 (V) lines.
Flush Monitor dimensions: 131 (width) x 197 (height) x 58 (depth) mm
Emerges 13 mm from wall once embedded
FERMAX flush-fit box dimensions: 108 (width) x 158 (height) x 45 (depth) mm
Standard flush-fit box dimensions (10x10x5 cm): 114 (width) x 174 (height) x 50 (depth) mm.
Surface Monitor dimensions: 131 (width) x 197 (height) x 35,2 (depth) mm
Power supply: 24 Vdc
Door release and guard unit call button.
Auto-on button for main and secondary camera activation (sequentially).
Button to start communication.
Button to end communication.
Call volume control
Colour, brightness and contrast control.
Door bell: for direct house call button connection to monitor/telephone.
Selectable call tunes.
With 2 pushbuttons for additional functions (without functions assigned).
Private communication. Conversation secrecy.
Totally hands-free operation; once the outdoor panel-home channel is activated, communication is simultaneous.
