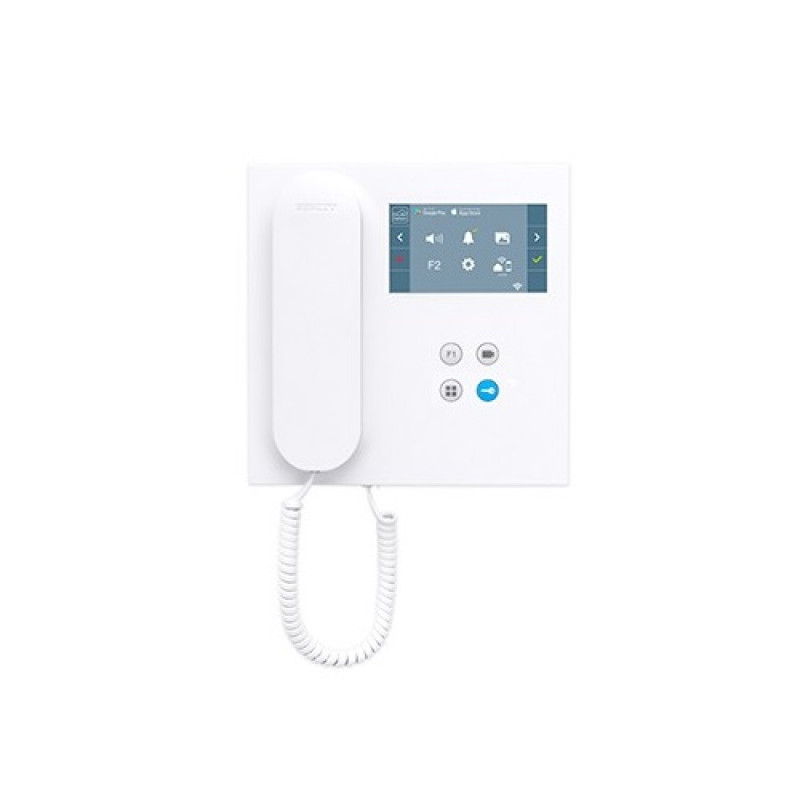

Fermax, 9446, 4.3 Inch Duox VEO Wifi Monitor

VEO WIFI is equipped with a Wi-Fi connection that allows calls forwarding to mobile devices. Thanks to the Fermax BLUE app, available free of charge on Play Store and App Store, the functions of the video doorphone can be managed from a smartphone or a tablet, in order to connect you to your home, wherever you are.

The DUOX VEO WIFI monitor is made of high-impact ABS plastic. It incorporates a 4,3” (16:9) panoramic color TFT screen. Its unique handset design incorporating a magnet enables the user to put it back into position correctly when the call is finished. Its balanced design of pure lines is distinguishing, modern and minimal.

Features:

• Automatic picture capture when the visitor calls (PHOTOCALLER): Yes (1 photo/call, until 150 photos, 320 x 240 pixels). This feature can be enabled by the user. Disabled by default.
• Guard unit call: Yes (by means of the door release button)
• Auto-on: Yes (with 3 outdoor panels/cameras)
• OSD menu: Yes
• Additional function F1: Yes (Button F1 sends a negative and/or command)
• Additional function F2: Yes (it only sends command, no negative)
• Apartment door bell differentiated from the outdoor panel: Yes
• Connection for additional devices (call extension, light/buzzer activator, etc.): Yes (ref. 2040, ref. 2438, ref. 3257)
• Additional terminals on the same address: Yes, max. 2 additional terminals (additional power supply can be required)
• Doormatic (automatic door release for offices, etc.) -
• Possible to remotely upgrade the monitor firmware version: Yes

Specifications:

GENERAL CHARACTERISTICS:

• Technology DUOX: (non-polarised 2 wire full digital system)
• Audio/Video system: Audio/Video Color
• Set-up (Installation): Surface mounted (order connector ref. 9447 separately)
• Handset with magnet to facilitate the hang up: Yes
• Induction loop available: Yes (replace handset for ref. 3443)
• Screen dimensions: 4,3” (Panoramic 16:9)
• Screen resolution (H x V): 480 x 272
• Color of the product: Matt white
• Number of pushbuttons: 4
• Kind of pushbuttons: Mechanical (silicone)
• Number of leds for lighted indications: 2 (red with 3 states: always ON, slow/fast
• blinking; white: for the wifi)

PROGRAMMING OF THE TERMINAL ADDRESS:

• From the terminal: From the OSD menu
• From the outdoor panel or guard unit: Yes
• From the outdoor panel throughout the apartment door bell: Yes

ADJUSTMENTS:

• Date and time: Yes (manual & automatically from the internet via wifi)
• Ring tones selection: Yes (5)
• Call volume control: Yes (10 levels by OSD menu)
• Do-not-disturb mode: Yes (by OSD menu) + Red led indication
• Audio volume control: Yes (10 levels by OSD menu)
• Brightness, color and contrast control: Yes (by OSD menu)

For more details, please refer with our attached datasheet.
