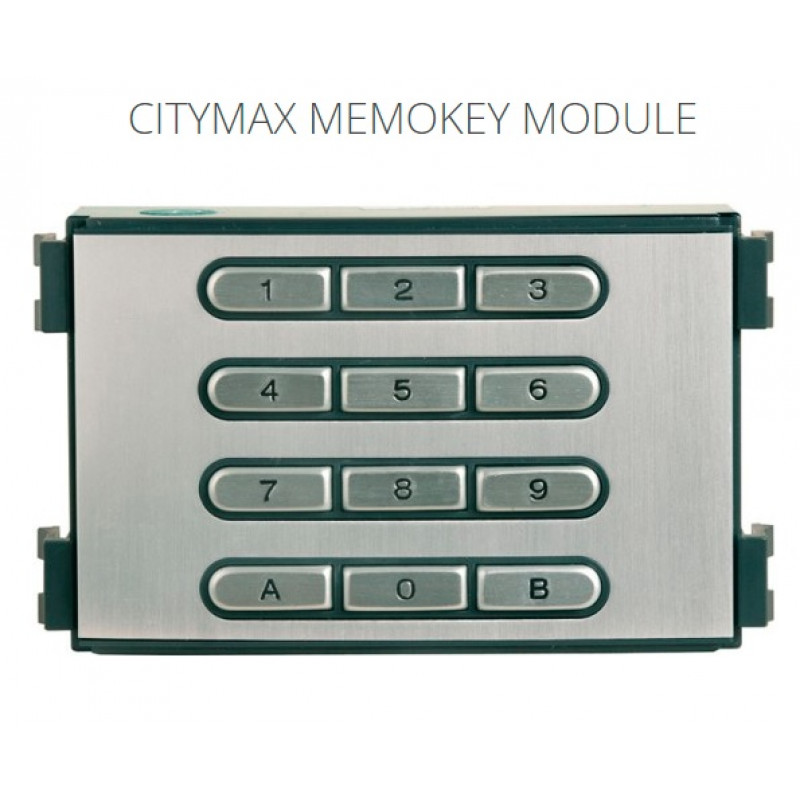

FERMAX 2520, CITYMAX MEMOKEY MODULE
- Brand:Fermax
- Product Code:FER2520
- Availability:Please Call or Email Us to Check Availability
FERMAX 2520, CITYMAX MEMOKEY MODULE
DESCRIPTION
Telephone type keypad that lets you open the door when a previously programmed 6 digit code is entered.
Module to incorporate in panels with viewer.
Stand-alone Access Control System. For installations where a simple access control is required, with no incidents record, to complement the audio/video door entry system and enable access to the building for residents, for example: offices, small businesses, garages.
TECHNICAL SPECIFICATIONS
Standalone Power supply: 12 Vac/Vdc
Up to 100 user codes
- Code length 4 to 6 digits.
- Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable.
- Exit button input.
- Free access button (trades) input.
- Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door
open/forced.
- Confirmation by keypad pulsation tone and acceptance or rejection of the code entered.
- Programming from the keypad by master code.
- Power supply 12 Vac / 12 Vdc
- Consumption: 6 mA (standby), 60 mA (active).
- Protection IPK5409
