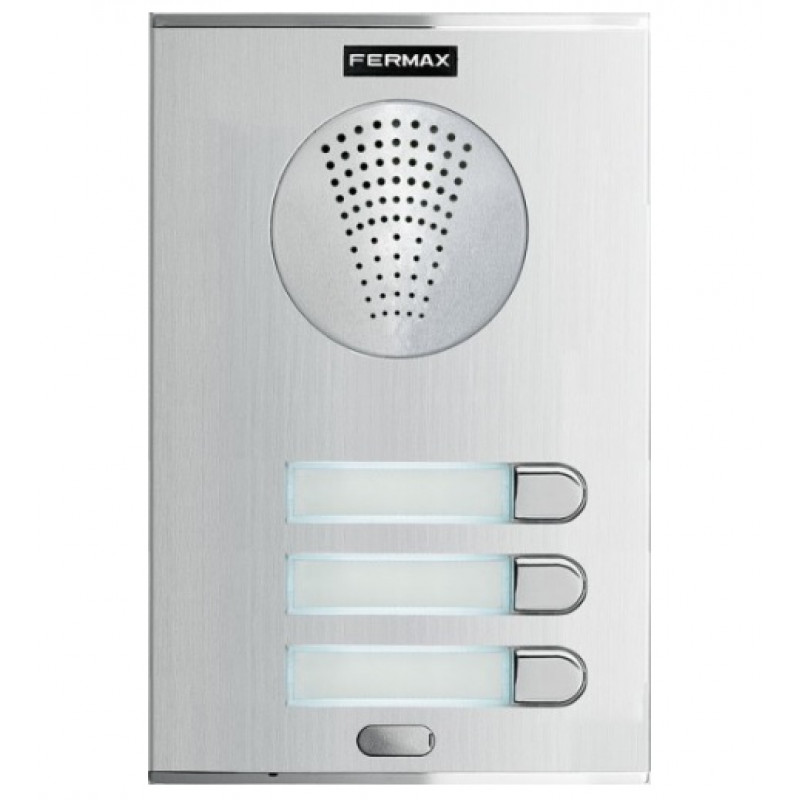

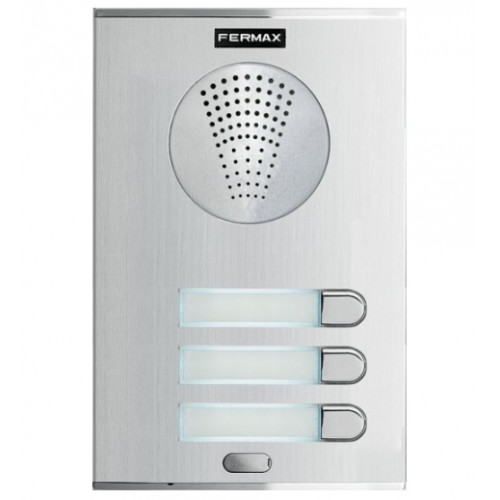

Fermax, 70723, City Panel VDS S3 AP 103
- Brand:Fermax
- Product Code:70723
- Availability:Please Call or Email Us to Check Availability
Fermax, 70723, City Panel VDS S3 AP 103
Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc.This new panel model is more robust, more luxurious and higher design and functional quality. The new design, in its video entry version, includes audio and video functions in the same module.Pushbuttons include a polycarbonate card slot (front access) to insert a label with the home owner’s name and door number. Built in lighting lets you see the card slots, even in pitch dark.
Key Features:
- Colour aluminium
- More Robust.
Specifications:
- Lighting LEDs consumption: 3,5 mA per card slot.
- Series 3 Panel.
- Panel measurements: 130x175 mm (widthheight):
- Flushfit box dimensions:: 115x162x45 mm (heightwidthdepth):
- Surface mounted box dimensions: 130x175x33 mm (heightwidthdepth).
- Power supply: 18 Vdc
- Consumption:
- in standby: 40 mA.
- call: 170 mA.
- active audio: 300 mA.
- audio+video: 380 mA (camera consumption: 80mA)
- Card slot module LED lighting: 35 mA per module.
- IPK437
- Audio capacity homeoutdoor panel: 2W
- Audio capacity outdoor panelhome: 0.15W
- Twoway volume control
- Operating temperature: 10 to 60 ºC.
Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
