Fermax, 5237, Resistant Proximity Kit

Fermax, 5237, Resistant Proximity Kit

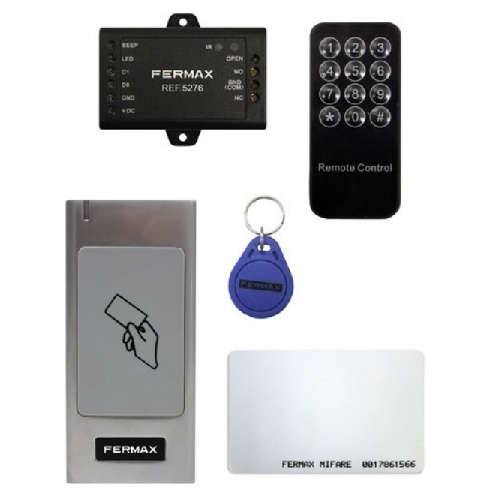

THE RESISTANT PROXIMITY KIT includes a vandal-proof proximity reader, with a slim profile and small dimensions, allowing it to be installed on narrow frame doors.

Lets you manage up to 1,000 users with the stand-alone MINI external controller (ref.5276). This controller includes two MASTER cards (REGISTRATIONS/CANCELLATIONS) and an IR infrared keypad for programming cards and parameters, 3 proximity cards (ref.52750), 2 keyrings (ref.52740) and a 12Vac/1A power supply (ref.4802).

MINI controller:

• Relay output 2A: Supplies 12Vdc between terminals GND, NO by default. Converts to dry contact by changing internal jumper switches.
• Configurable from 1-99 sec. (5sg by default) or in flip-flop (when the card is presented the relay is triggered and when presented again it is deactivated).
• Exit pushbutton input. GND, OPEN.

The controller allows up to 2 different types of access when installing a proximity reader.

-Card only
-Multi-card. When 2 to 9 valid cards are shown, the door opens.

Mechanical Features:

• Appearance
• Steel.
• Surface mounted system.
• Hidden screws.
• IP66 /IK 09
• Dimensions: Surface mounted (48(H) x 103(V) x 20(P) mm

Technical Features:

• Power supply:
• Stand-alone 12 Vdc (9-24Vdc)
• Consumption in standby:
• 12Vdc / 25mA
• Operating temperature: [-20ºC, +60ºC]
• Humidity: [10%, 95%]
• Compatibility: EM Cards/keyrings (125KHz), MIFARE (13,56MHz) and HID (ISOProxII, 125KHz)
• Wiegand 26 proximity protocol.
• RF radiated power: 125KHz: 4.382dBuA/m, 13,56MHz: 2.02dBuA/m.

Technical Specifications:

• STAND-ALONE WIRING (with external controller ref. 5276)
• +DC (red): Positive feed 12Vcc
• GND (black): Negative feed 12Vcc
• D0 (green), D1 (white): Wiegand 26 connection.
• LED (brown): LED control
• BZ (yellow): Acoustic signal.
