Fermax, 5238, Resistant Memokey Kit

Fermax, 5238, Resistant Memokey Kit

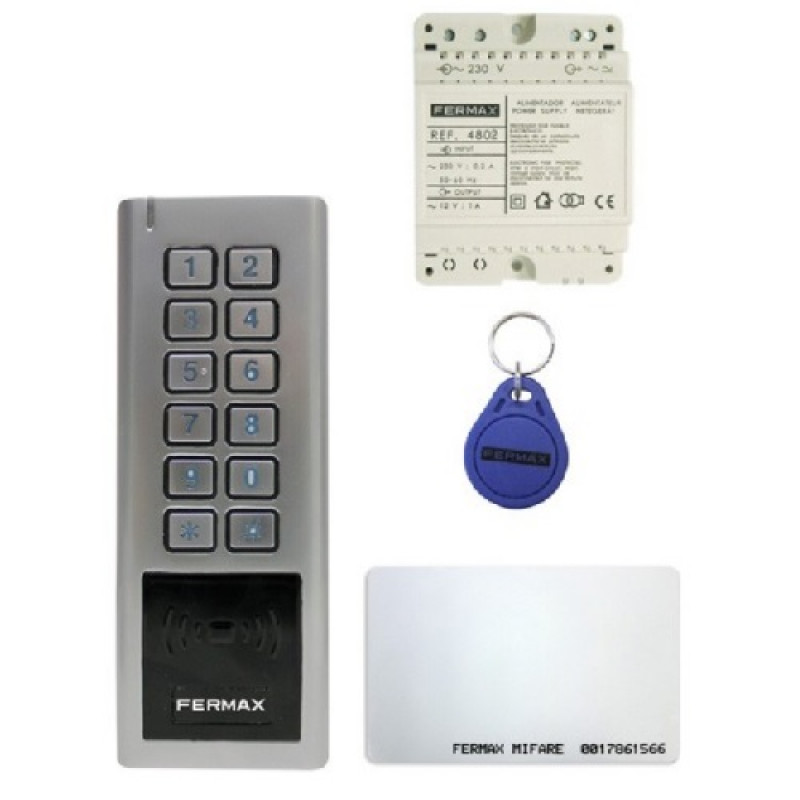

The MEMOKEY RESISTANT KIT for stand-alone anti-vandal access control by keypad and proximity lets you manage up to 600 users. Includes an IP66/IK9 keypad with built-in compact sized slimline controller (ref.5293), 3 proximity cards (ref.52750), 2 keyrings (ref.52740) and a 12Vac/1A power supply (ref.4802).

Key Features:

• Relay output 2A configurable from 1-99sg (5sg by default) or bistable (when the card is presented, the relay is triggered and when it is presented again, it is deactivated).
• Open door sensor input.
• Exit pushbutton input.
• Alarm output (negative output that triggers a ref.2013 relay).

This keypad allows up to 4 different types of access:
- Card only
- Card+PIN
- Card or PIN (by default)
- Multi-card, PIN. When from 2 to 9 valid cards or PINs are presented, the door opens.

Mechanical Features:

• Appearance
• Steel.
• Surface mounted system.
• Hidden screws.
• IP66 /IK 09
• Dimensions: Surface mounted (55(H) x 147(V) x 20(P) mm.

Technical Features:

• Power supply: 12Vac
• Operating temperature: [-20ºC, +60ºC]
• Humidity: [10%, 90%]
• Compatibility: EM Cards/keyrings (125KHz), MIFARE (13,56MHz) and HID (ISOProxII, 125KHz)
• Configurable in proximity protocol Wiegand 26 and 8-bit burst keyboard format.
• Relay (stand-alone) 2A (C, No, Nc)
• RF radiated power: 125KHz: 4.382dBuA/m, 13,56MHz: 2.02dBuA/m.

Technical Specifications:

• STAND-ALONE WIRING
• ~ (Red): Positive feed 12~28Vac/dc
• ~- (Grey&black): Negative feed 12~28Vac/dc
• C (Black&white), NO (Blue), NC (Green&black): Potential free relay. C_Common, NO_Normally Open, NC_Normally Closed.
• GND (black), SP (brown): Door sensor
• GND (black), BS (yellow): Hallway exit button
• Alarm- (grey), ~(red): Alarm output <200mA
