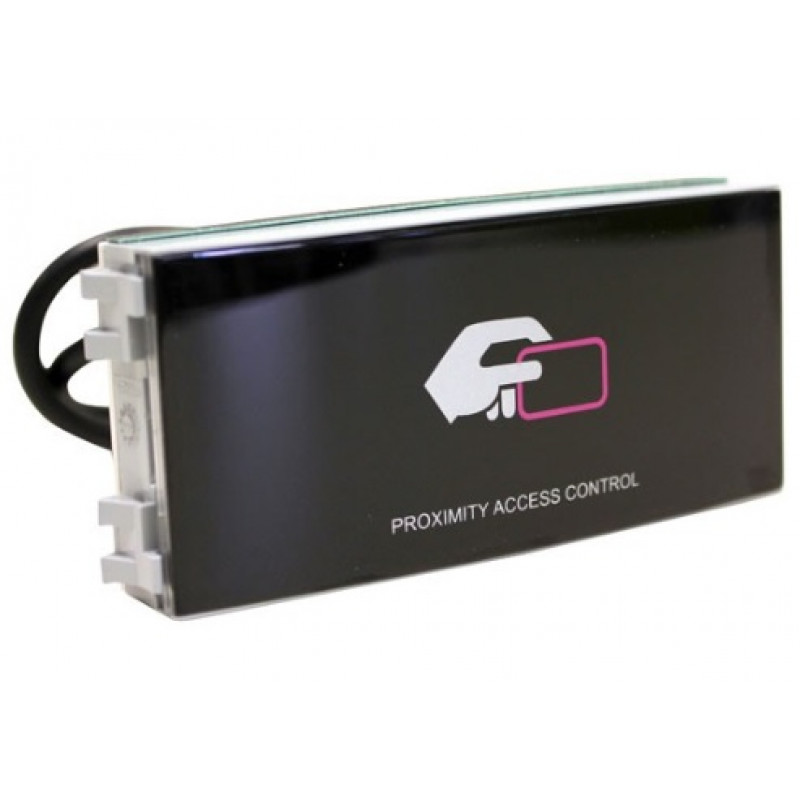

Fermax, 7461, Skyline WG Mifare/EM Proximity Reader V

Fermax, 7461, Skyline WG Mifare/EM Proximity Reader V

Reader that lets you open the door by displaying a multi-frequency card or proximity keyring (EM (125KHz), MIFARE (13,56MHz) and HID (125KHz, ISOProxII). Only authorized cards or keyrings will trigger the device. No physical contact is necessary. Acoustic confirmation of the acceptance or rejection of the card or keyring presented. Access control module for inclusion in SKYLINE and CITYLINE audio/video entry panels. Recommended for interiors and exteriors.

The readers are Wiegand 26, allowing you to equip the access control installation with anti-sabotage security, as neither the door opening mechanism nor the exit button connection are built-in. These functions are supported by the door controller that uses the Wiegand protocol 26 and are therefore out of reach of tampering.

Specifications:

• Power supply:
  • Stand-alone 12 Vcc
  • Centralized: 12Vcc.
  • Consumption in standby: 12Vcc / 35mA
• Operating temperature: [-15ºC, +55ºC]
• Compatibility: EM Cards/keyrings (125KHz), MIFARE (13,56MHz) and HID (ISOProxII, 125KHz)
• Wiegand 26 proximity protocol.
• RF radiated power: 125KHz: 4.382dBuA/m, 13,56MHz: 2.02dBuA/m.

Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
