Patol, 710-008, Stainless Steel Infra-Red Heat Sensor with Controller 5020

Patol, 710-008, Stainless Steel Infra-Red Heat Sensor with Controller 5020

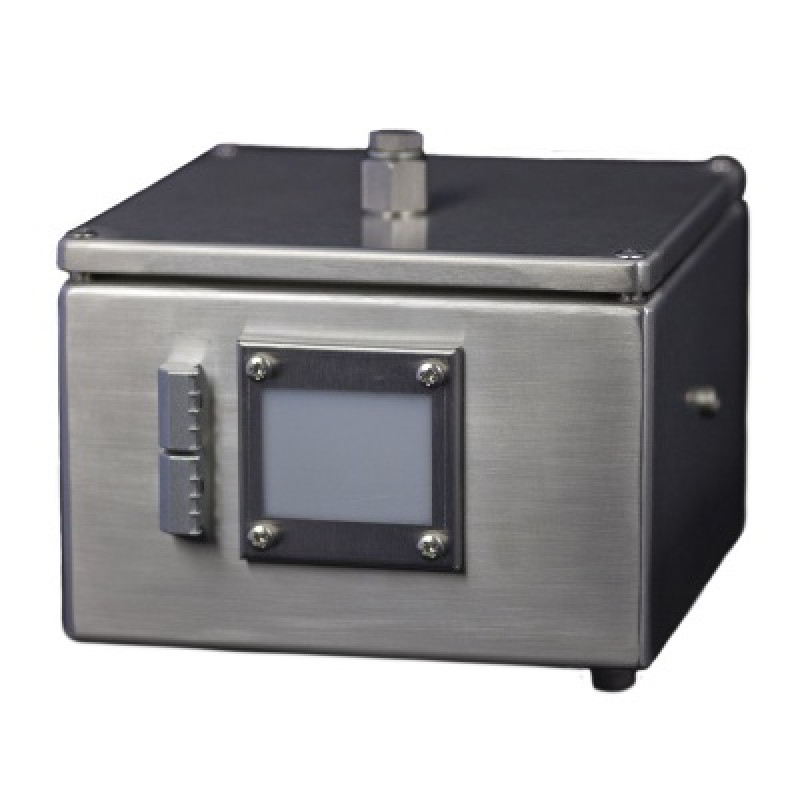

The 5710 High Temperature Transit Flame Sensor monitors high temperature materials (up to 240° on highest sensitivity), being transported on conveyor systems and triggers as the material reaches the ember or flame condition.

The sensor employs enhanced infra-red monitoring technology that analysis the levels of IR emission in the narrow band of 4.2-4.7μm. As the sensor is tuned to this band it is “solar blind” meaning the “background” and “transient” IR spectra are discriminated. This provides enhanced false alarm immunity.

Air purging from a compressed air feed is used to maintain a positive air pressure in conjunction with an air knife to prevent dust settling on the   sensor window. The air supply is monitored by a pressure switch which on air failure is signalled as a fault status.

The 5020 controller is directly connected to the sensor. A series of user programmable DIL switches allows option selection including detector  sensitivity settings, auto/manual reset sequence selection and single / coincidence voting from the four individual internal detection channels for the alarm trip and shutdown outputs.

The sensor air pressure and signal cable connections are fault monitored and fail safe. The controller incorporates an aux. fault input & common fault output contact.

Key Features:

• Detection of ember and flame of high Temperature product.
• Air purged system for dusty environments with air pressure monitoring.
• Four Channels of  Isolated Detectors for Maximum reliability.
• Single / Coincidence voting output
• Timed auto reset / coincidence analyser circuit
• Tuned response - solar blind
• Voting Logic  & Latching options
• Alarm & Trip Functions
• Fault Monitored, with Test & Reset push Buttons
• Field Programmable
• Local Indicators

For more details, please refer with our attached datasheet.
