Patol, 710-209, Sensor 5730 ABS, Air Purge Blower 5040 (115vac)

Patol, 710-209, Sensor 5730 ABS, Air Purge Blower 5040 (115vac)

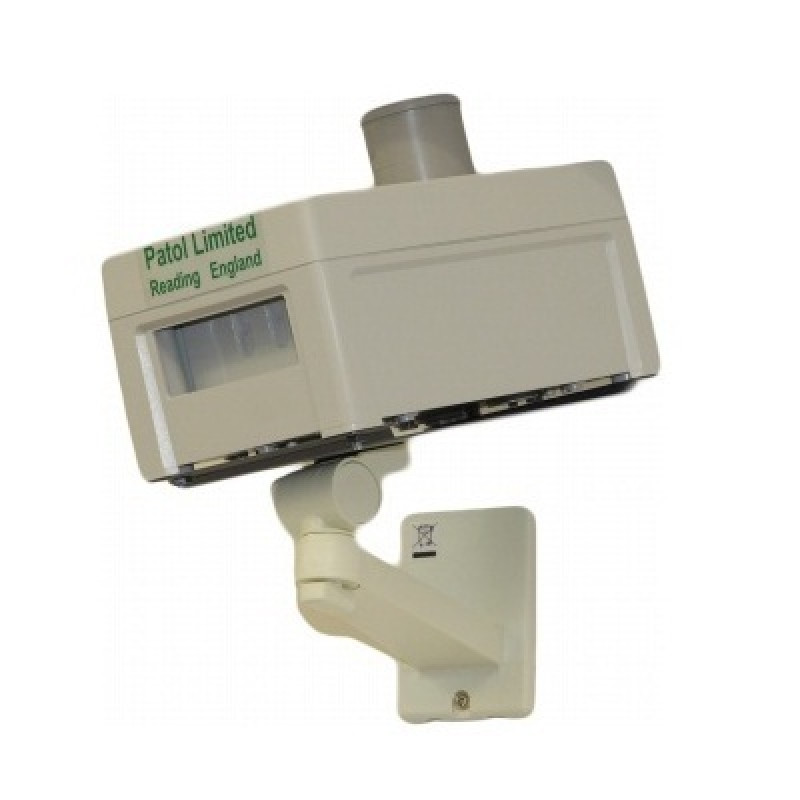

The 5730 High Temperature Transit Flame Sensor monitors high temperature materials (up to 240° on highest sensitivity), being transported on conveyor systems at speeds of between 0.5 and 6m/s, and triggers as the material reaches the ember or flame condition.

The sensor employs enhanced infra-red monitoring technology that analysis the levels of IR emission in the narrow band of 4.2-4.7µm. As the sensor is tuned to this band it is “solar blind” meaning the “background” and “transient” IR spectra are discriminated. This provides enhanced false alarm immunity.

Air purging from a mains operated Air Purged Blower (APB) air feed is used to maintain a positive air pressure in the sensor enclosure, and ensures the prevention of dust settling on the sensor window. The air supply is monitored by a pressure switch which on air failure is signalled as a fault status.

The 5730 incorporates within the unit a series of user programmable DIL switches. Option selection including detector sensitivity settings, auto/manual reset sequence selection and single / coincidence voting from the four individual internal detection channels for the alarm trip and shutdown outputs.

The sensor air pressure and signal cable connections are fault monitored and fail safe. The controller incorporates an auxiliary fault input and common fault output contact.

Key Features:

• Detection of ember and flame of high temperature product.
• Air purged system for dusty environments with air pressure monitoring.
• Four Channels of Isolated Detectors for maximum reliability.
• Single / Coincidence voting output
• Timed auto reset / coincidence analyser circuit
• Tuned response — solar blind
• Voting Logic & Latching options
• Alarm & Trip Functions
• Fault Monitored, with Test & Reset push Buttons
• Field Programmable
• Local Indicators

For more details, please refer with our attached datasheet.
