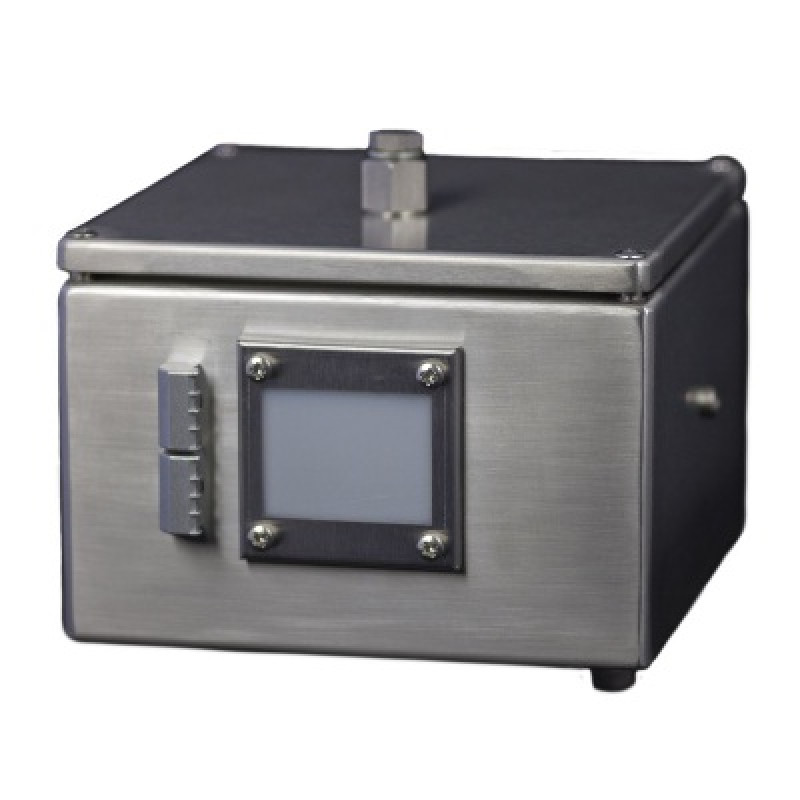

Patol, 725-015, Stainless Steel Infra-Red Heat Sensor without Controller

Patol, 725-015, Stainless Steel Infra-Red Heat Sensor without Controller

The 5710 High Temperature Transit Flame Sensor monitors high temperature materials (up to 240° on highest sensitivity), being transported on conveyor systems and triggers as the material reaches the ember or flame condition.

The sensor employs enhanced infra-red monitoring technology that analysis the levels of IR emission in the narrow band of 4.2-4.7μm. As the sensor is tuned to this band it is “solar blind” meaning the “background” and “transient” IR spectra are discriminated. This provides enhanced false alarm immunity.

Air purging from a compressed air feed is used to maintain a positive air pressure in conjunction with an air knife to prevent dust settling on the   sensor window. The air supply is monitored by a pressure switch which on air failure is signalled as a fault status.

Key Features:

• Detection of ember and flame of high Temperature product.
• Air purged system for dusty environments with air pressure monitoring.
• Four Channels of  Isolated Detectors for Maximum reliability.
• Single / Coincidence voting output
• Timed auto reset / coincidence analyser circuit
• Tuned response - solar blind
• Voting Logic  & Latching options
• Alarm & Trip Functions
• Fault Monitored, with Test & Reset push Buttons
• Field Programmable
• Local Indicators

For more details, please refer with our attached datasheet.
