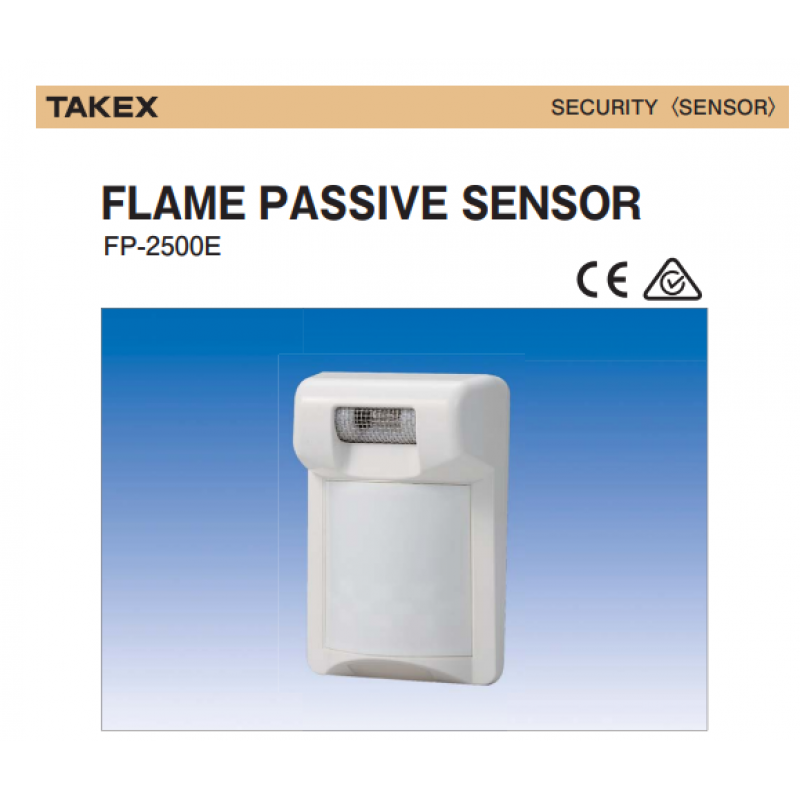

TAKEX (FP-2500E) 10m Flame & Passive Sensor
- Brand:Takex
- Product Code:FP-2500E
- Availability:Please Call or Email Us to Check Availability
TAKEX (FP-2500E) 10m UV Flame & wide-angle Intrusion Passive Sensor
A combination UV flame sensor and wide-angle PIR with up to 10m flame and intrusion detection for safer indoor protection of your premises.
- High sensitivity ultraviolet flame sensor + wide angle intrusion PIR
- Dual ouput modes; AND/OR
- Forced output mode following continued flame detection
- Alarm memory function
- Multi-zone PIR technology provides pet immunity up to 20kg (40lbs)
- PIR area adjustment
- Detection timer
| SPECIFICATIONS | |
|---|---|
| Detection system |
[Flame Sensor]
Ultraviolet rays (Detection wave length 185 to 260nm) [PIR Sensor] Passive infrared |
| Coverage |
[Flame Sensor]
33' (10m) with 2.75'' (7cm) lighter flame in front Approx. 120° conically [PIR Sensor] Wide Angle 33' (10m) |
| Sensitive zone |
[PIR Sensor]
Max. 29 pairs |
| Area adjustment |
[PIR Sensor]
3 steps |
| Supply voltage |
10V to 30VDC (non-polarity)
|
| Current consumption |
20mA Max.
|
| Alarm output |
Individual mode:
Flame sensor output (From ALARM① terminal) • Dry contact relay (Semi-Conductor) (N.O./N.C. selectable) • Contact operation : Detection time + off delay. (Approx. 2 sec.) • Contact capacity : 30V (AC/DC) 0.25A Max. (resistive load) Passive sensor output (From ALARM② terminal) • Dry contact relay (Semi-Conductor) (N.O./N.C. selectable) • Contact operation : One shot (Approx. 2 sec.) • Contact capacity : 30V (AC/DC) 0.25A Max. (resistive load) AND mode: Forced flame signal output (From ALARM① terminal) When the flame sensor detects a flame twice during the selected AND timer. (Detection time + off delay. Approx. 2 sec.) Or When the flame sensor continues to detect a flame for flame duration time 15 or 30 sec. (Detection time after 15/30 sec + off delay. Approx. 2 sec.) ・Dry contact relay (Semi-Conductor) (N.O./N.C. selectable) ・Contact capacity : 30V (AC/DC) 0.25A Max. (resistive load) AND detection signal output (From ALARM② terminal) When both passive and flame sensors detect during the selected AND timer. (Detection time, Min. 2 sec.) ・Dry contact relay (Semi-Conductor) (N.O./N.C. selectable) ・Contact capacity : 30V (AC/DC) 0.25A Max. (resistive load) |
| Alarm memory |
Reset after blinking (3 min) and lighting (47 min)
(Operate flame and passive LED individually) |
| Tamper output |
Dry contact relay N.C.
(Activated when the front cover is detached) Contact capacity: 30V (AC/DC) 0.1A Max. (resistive load) |
| LED indicator |
[Flame Sensor] Red LED:
• Lighting at alarm (Detection time + off delay. Approx. 2 sec.) • Blinking (3 min) and Lighting (47 min) at memory [PIR Sensor] Red LED: • Lighting at alarm (One shot, Approx. 2 sec.) • Blinking (3 min) and Lighting (47 min) at memory • Lighting at trouble. |
| Functions |
[Flame Sensor]
Detection timer (1sec, 3sec) |
| Sensitivity adjustment |
[Flame Sensor]
Detection sensitivity (H [100%], L[50%]) *Detection sensitivity can be set only at "Individual" mode. *H[100%] is fixed at "AND" mode. |
| Mounting position |
Indoor wall surface (Ceiling with optional attachment “BCW-401”)
|
| Wiring |
Terminals
|
| Weight |
Approx. 120g
|
| Appearance |
Resin
|
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
5°F to +131°F (-15°C to +55°C) without condensation
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
