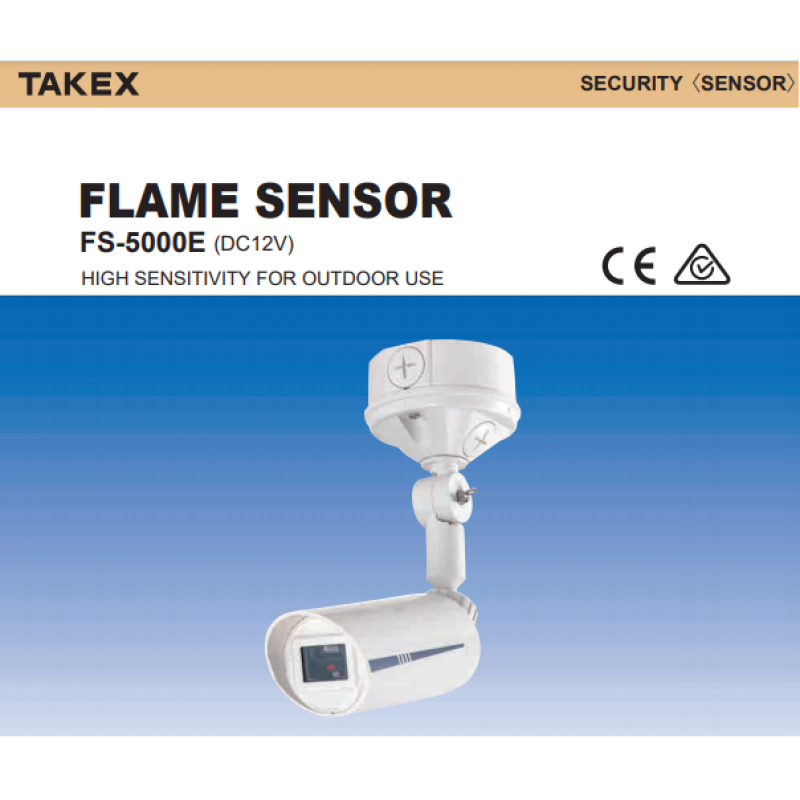

TAKEX (FS-5000E) Up to 10m Outdoor, Omni-directional Bracket
- Brand:Takex
- Product Code:FS-5000E
- Availability:Please Call or Email Us to Check Availability
TAKEX (FS-5000E) Up to 10m Outdoor, Omni-directional Bracket
FS-5000E immediately detects ultraviolet rays contained in flames and activates an external output.
Its weather proof construction allows FS-5000E to be used in outdoor applications, for fire prevention of areas where fire is prohibited.
- High sensitivity ultraviolet flame sensor
- Omni-directional bracket
- NO/NC relay output
- Adjustable response time
- Weather proof housing for indoor or outdoor use
| SPECIFICATIONS | |
|---|---|
| Detection system |
Ultraviolet rays detection
(Detected wave length <185 to 260nm>) |
| Coverage |
33ft. (10m)
Gas Flame of Lighter in front of sensor : approx. 2.75”(7cm)33ft.(10m)[2.75"(7cm)flame] 100ft. (30m) Flame of N-heptane on fire plate 15cm×15cm: approx. 23.62”(60cm) *The flame size is rough. • Angle Vertical: approx. 75degrees (upward: 15degrees) Hrizontal: approx. 100degrees (downward: 60degrees) |
| Supply voltage |
10V to 30VDC (non-polarity)
|
| Current consumption |
35mA or less
|
| Alarm output |
• Dry contact relay Form C (alarm : open/close)
Contact capacity: 30V(AC/DC)0.5A or less(resistance load) • Operation time: The following are selectable Detection time + off delay operation approx. 2sec. - 1 min. Detection time + off delay operation approx. 5sec. - 10 min. • Output operation: The following are selectable Same time as above continuous outoput Same time as above flashing output • Operation mode (day/night time discernment function): 5lux (night time operation) - ∞lux (day time operation) adjustment volume |
| Alarm memory |
LED (yellow) blinking and lights on /or LED disable.
[selectable by switch] |
| LED indicator |
Operation LED (red): synchronous dry contact relay
Memory indication LED (yellow): After blinking for 3 minutes and auto reset after 47 minutes or manually reset |
| Adjustment |
Adjustment range
Vertical: downward 90degrees (horizontal - vertical) Horizontal: 180degrees |
| Sensitivity adjustment |
･ Sensitivity
H(100%), L(50%)[selectable by switch] ･ Detection timer 1sec., 6sec., 15sec., 30sec., [selectable by switch] |
| Mounting position |
Indoor, Outdoor
|
| Wiring |
Power supply: 2
Dry contact: 3 |
| Weight |
Approx. 19.3oz (550g)
|
| Appearance |
Sensor part: PC resin (white)
Adjustment, mounting part: AES resin (white) |
| Accessory |
Tapping screw Φ6 × 30(SUS): 4pcs
Tapping screw Φ4 × 8(SUS): 1pc Band: 1pc Area mask seal: 1pc |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to + 122°F (-20°C to +50°C)
|
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
