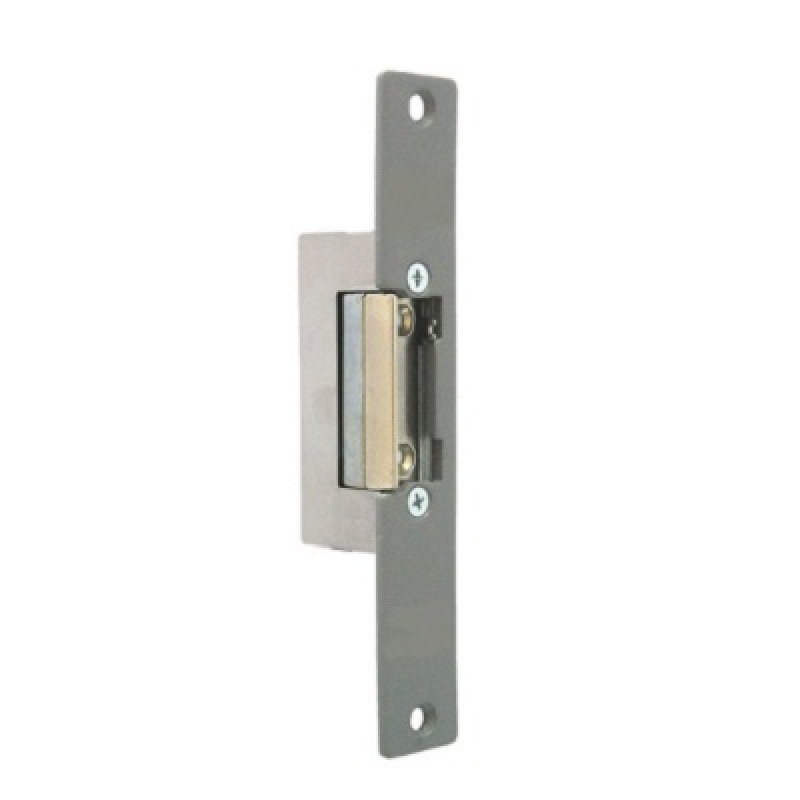

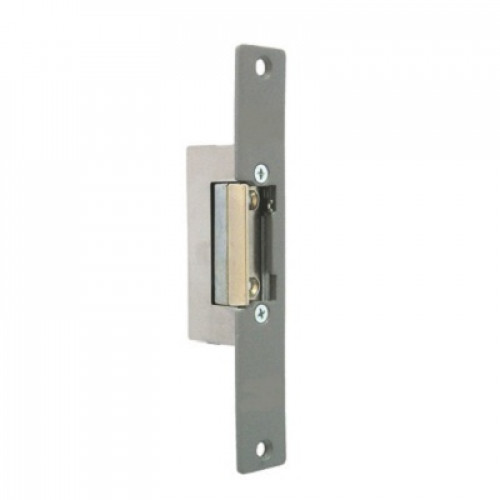

Fermax, 2911, 12Vac Universal Lock Release (N-S)

Fermax, 2911, 12Vac Universal Lock Release (N-S)

Flush mounted Door lock.
The electric lock release is a device installed in the door frame to control opening remotely using an electronic device. In an electric door entry system installation it is possible to activate the door lock of the building's entrance to allow the entry of the visit directly from the telephone or monitor just by pressing the doorlock key. The doorlock it made up of an electrical mechanisim and a shield if it is flush mounted.

N type Normal 12 Vac. (Normal operation and 12 Vac activation).
The lock release is unblocked for the time that the 12 Vac voltage is applied.

S type flush shield.
For access doors. S type grey metallic trim fitted with an electrical mechanism to form a flush-fit lock release.

Specification:

• Dimensions: 25(H)x160(V) mm.

Consumption:

• N, A 12Vac: 980mA
• N-412 12Vdc: 200mA.
• N-512 12Vdc: 150mA.
• N-424 24Vdc: 120mA.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
