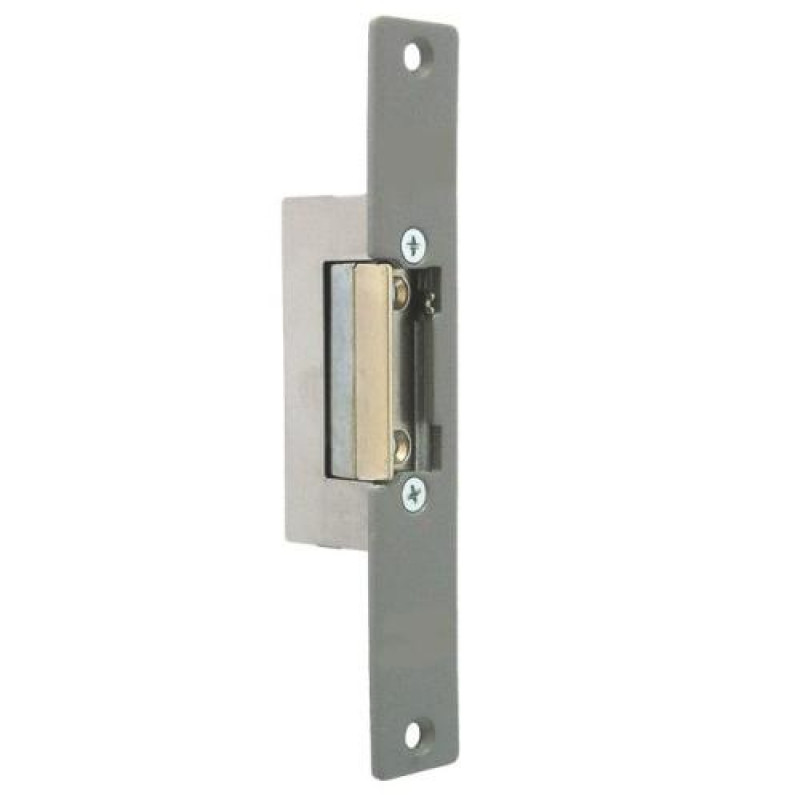

Fermax, 3048, 410A-P22 MAX Electric Lock Release

Fermax, 3048, 410A-P22 MAX Electric Lock Release

Flush mounted Door lock.

The electric lock release is a device installed in the door frame to control opening remotely using an electronic device. In an electric door entry system installation it is possible to activate the door lock of the building's entrance to allow the entry of the visit directly from the telephone or monitor just by pressing the doorlock key. The doorlock it made up of an electrical mechanisim and a shield if it is flush mounted.

Serie 410

This door lock release is made up of an electric mechanism MOD.410 which dimensions are:
52,5(V)x16,4(H)mm. Recommended for replacement. The smallest door lock on the market (front width 16,5mm). Installed in smaller aluminium or PVC frames. Includes radial latch allowing the bolt to rotate on its axis without having to make a lateral cut in the door frame, which is not possible in traditional latch-bolt locks. The standard version offers MAX adjustable latch, allowing the adjustment between the latch and the bolt in the installation proces.

Specifications:

• Weight: 0.1885 kg
• Size: 3.4x16.3x2.7 cm

For more details, please refer with our attached datasheet.
