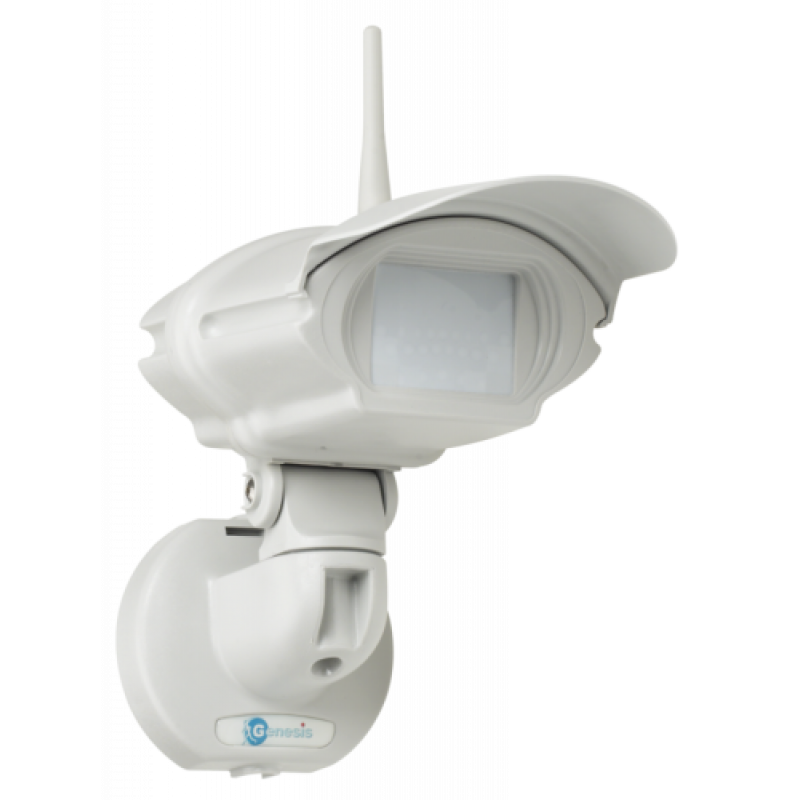

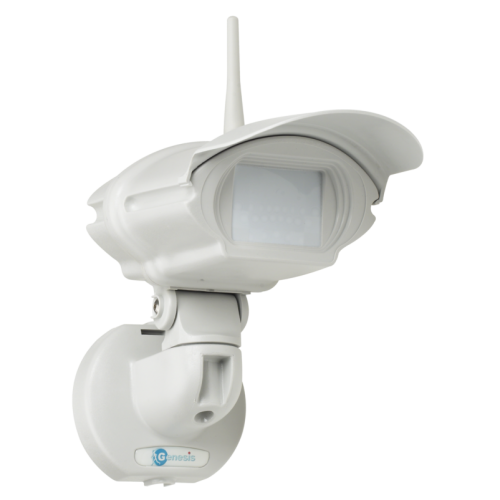

Genesis (LGWP12VC) 12m x 90° vertical curtain lens with pan European frequency transmitters

Genesis (LGWP12VC) 12m x 90° vertical curtain lens with pan European frequency transmitters

Genesis 1 Wireless (LGWP) is completely wire-free with a robust wireless transmission range of up to 1km. A battery life of up to two years is achieved using advanced power-saving technology which allows the unit to maintain optimum performance, even when the batteries are running down.

The LGWP range of Wireless Passive Infra Red Detectors (PIR) allow fast, flexible installations with low maintenance and costs.

Genesis uses sophisticated signal processing and optics to minimise nuisance alarms caused by the sun, shadows and reflections as well as loose fluttering materials. Battery life is around two years battery life of around two years which is achieved by a special regulator that maintains optimum performance while the batteries are running down.

Day light and thermal sensors provide automatic compensation in varying climate conditions and there is a shock sensor for detecting physical attack as well as a sensor for anti-masking (cloak).

Supervision is achieved by periodic poling to the receiver whilst reporting battery condition, lens type, sensitivity settings and software version.

The new 3020 detector has these additional features: Infra Red anti-masking, 3 axis acceleration sensor and twin dual element pyroelectric sensors with mirror/lens optics. There is the additional feature of AB logic to provide extra filtering.

For maximum sensitivity, an alarm is generated if either zones A or B are crossed but for an extra degree of filtering an alarm can only be generated is A followed by B or B followed by A is crossed.

• LED display for easy programming and setup
• Wireless transmission up to 1km – can be extended with repeaters
• External aerial available to extend transmission of difficult sites
• Various detection patterns available
• IP interface to a wide range of leading brand NVRs
• Up to 64 detectors can operate with one masthead receiver
• Easy to use walk-test instrument saves time for the installer
• Wireless Genesis keypad and keyfob available for easy remote set and unset of alarms
• IP66 weather rated and Grade 2 compliant

Available Detection Patterns

There are currently five popular lens patterns to choose from:

• Long Wide Range (LGWP3020) Provides coverage of 30 metres out by 20 metres across.
• Medium Wide Range (LGWP1520) Provides coverage of 15 metres out by 20 metres across.
• Long Narrow Range (LGWP4004) Provides coverage of 40 metres out by 4.5 metres across. This is ideal for perimeter coverage.
• The horizontal and vertical Curtain types (LGWP12HC) and (LGWP12VC) are just flat fan shaped patterns without the intermediate zones. These are used to look along fence lines or down the sides of a buildings. If the horizontal version is set to look straight ahead, animals will be able to wander underneath the detection zone without causing nuisance alarms.
