Geze (GZ147035) Slimchain 24v DC/300mm/LH/1.1Amp/EV1 - Silver

Geze (GZ147035) Slimchain 24v DC/300mm/LH/1.1Amp/EV1 - Silver

  • Brand:GEZE
  • Product Code:GZ147035
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


Geze (GZ147035) Slimchain 24v DC/300mm/LH/1.1Amp/EV1 - Silver

The GEZE Slimchain is designed for universal use. This chain can be integrated perfectly into the facade design thanks to its slim and discreet look.

  • Can be used both for heat and smoke extraction (24V) and for natural heat and smoke extraction systems in accordance with DIN 12101-2 as well as for natural ventilation (230V using a mains adaptor)
  • Intelligent electronics: continuously adjustable drive stroke and individual speeds for the ventilation and RWA modes
  • Integrated synchronised module: true synchronisation of up to 3 drives with no external control device
  • DIP switch to adjust control mode (solo and synchronic, master, slave)
  • Simple and fast assembly using the GEZE Smart fix assembly system

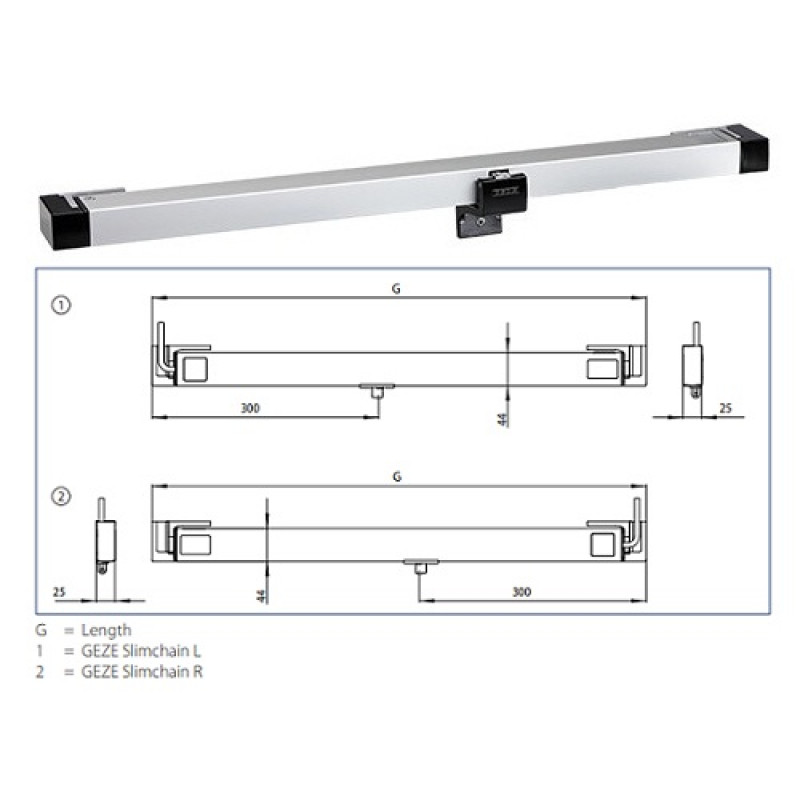

Type of window: Bottom hung, Top hung, Side hung

Opening width/stroke (mm): 300

Tension (N): 300

Pressure (N): 200

Space of frame (mm): Frame construction inwards: 30 outwards: 30

Construction possibility: Wing, Frame or integrated construction

For more details, please refer with our attached datasheet.
