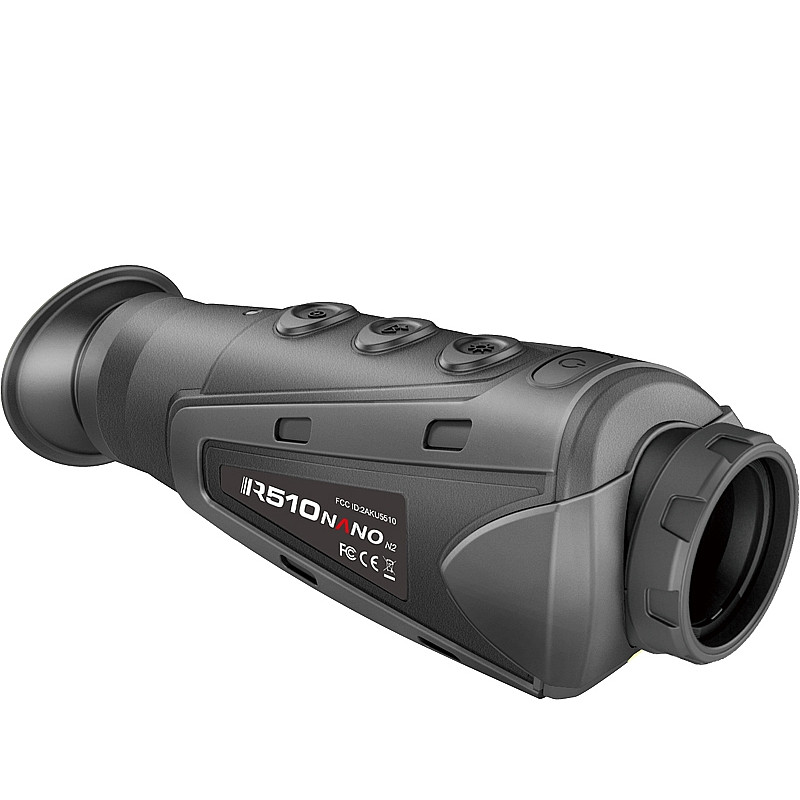

GUI-IR510N2, IR510 Nano N2 THERMAL IMAGERS

GUI-IR510N2, IR510 Nano N2 THERMAL IMAGERS

  • Brand:Guide Infrared
  • Product Code:GUI-IR510N2
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


GUI-IR510N2, IR510 Nano N2 THERMAL IMAGERS

The IR510 Nano Series from Guide incorporates thermal technology, advanced algorithms and innovation into a compact and easy to use device. Features a 400x300 17µm thermal sensor and a LCOS colour display with 50Hz frame rate for smooth & crisp viewing and is capable of detecting a human up to 500m. Users can select from up to five different colour palettes for a more customised experience.

The unit operates silently and is easy to use, featuring four control buttons all of which are placed within the users natural hand-placement for easy reach.

Power is supplied via an internal battery which provides 5 hours of operation time on average and can be recharged via a standard USB cable.

Specifications

  • Thermal Sensor: 400x300 17µm
  • Spectral Range: 8µm-14µm
  • Detection Range: 700m (Human: 1.8mx0.5m), 1700m (Vehicle: 2.3mx2.3m)
  • Digital Zoom: 2-4x
  • Focus: 25mm (Manual)
  • Dioptre: ±4
  • Field of View: 14.6° x 11.1°
  • Display: 0.2" LCOS Colour
  • Colour Palettes: Black hot, white hot, red hot 1, red hot 2, red hot 3
  • Frame Rate: 50Hz
  • Operating Temperature: -10℃ to 50℃
  • Protection: IP66
  • Drop Rating: N/A
  • Weight: 375g
  • Size: 168x67x62mm
  • Battery: Internal Li-Ion (3.7v, 3200mAh)
  • Average Operating Time: 5hrs
  • Ports: USB (Charging) & MCX Connector (PAL/NTSC)
  • Adaptor: Standard USB power adaptor (Max 10w)

Additional Functions

  • Built-In torch
  • Cross cursor
  • Zoom
  • Freeze
  • Charging indicator

Includes

  • Thermal imager
  • Power adapter
  • USB cable
  • Video cable
  • Lens cap
  • Wrist strap
  • Shoulder strap
  • Soft drawstring bag
  • User manual
