GUI-MOBIR-AIR-IOS, MobIR Air IOS HANDHELD THERMAL IMAGERS

GUI-MOBIR-AIR-IOS, MobIR Air IOS HANDHELD THERMAL IMAGERS

  • Brand:Guide Infrared
  • Product Code:GUI-MOBIR-AIR-IOS
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


GUI-MOBIR-AIR-IOS, MobIR Air IOS HANDHELD THERMAL IMAGERS

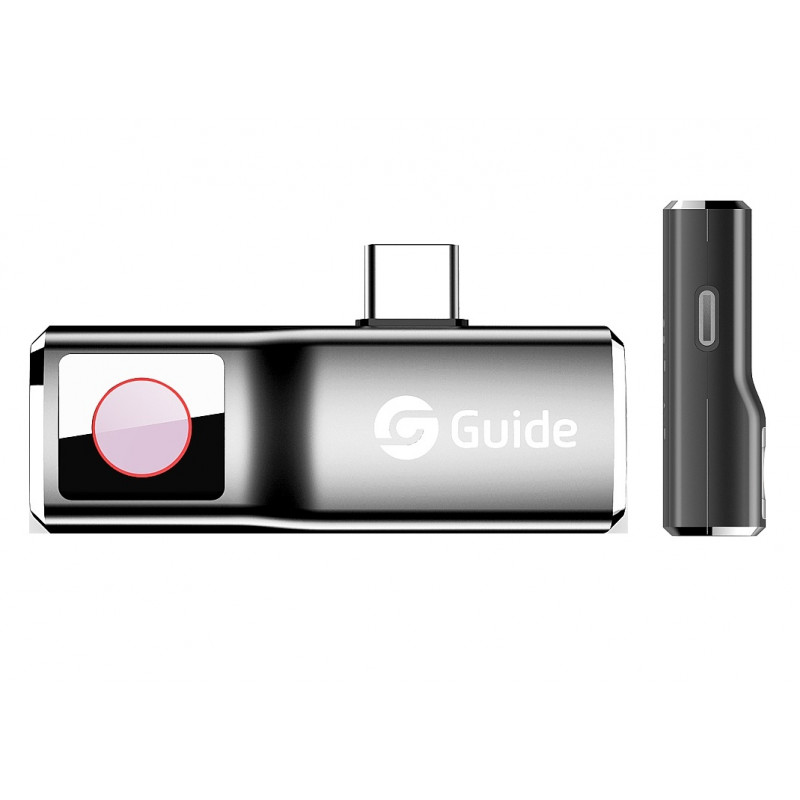

The Guide MobIR Air turns your smartphone (Android or iOS) into a handheld thermal imaging device perfect for detecting electrical faults, insulation problems, water ingress, etc. Requires a dedicated App to function with smartphones, which offers multiple on-board thermography tools and useful functions.

Specifications:

  • Thermal Sensor:120x90 17µm
  • Field of View: 50°
  • Power Consumption: <150mW
  • Interface: iOS: Lightning/ Android: USB Type-C
  • Normal Work Temp.: 0℃ to 35℃
  • Optimum Work Temp.: 16℃ to 22℃
  • Accuracy: ±3℃ (Ambient temp. is 10℃ to 26℃)
  • Storage Temp.: -10℃ to 55℃ (relevant humidity is 5%-55% under non-condensing state)
  • Working Height: 3000m (10,000ft)
  • Weight: 20g
  • Dimensions: 50x14x18mm

Features:

  • Easy to use
  • Fast captured data sharing
  • Anodised aluminium body
  • Built-In glass lens protector
  • Android & iOS options
  • Dedicated App
  • Multiple colour palettes
  • Settings controls
  • Plug & Play design
  • Thermography tools
  • Analysis tools
  • Full colour palette control
  • Picture-in-Picture mode
  • No battery required (Powered by smartphone)
  • Low power consumption
  • Smooth frame rate
