GUI-T120, T120 HANDHELD THERMAL IMAGERS

GUI-T120, T120 HANDHELD THERMAL IMAGERS

  • Brand:Guide Infrared
  • Product Code:GUI-T120
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


GUI-T120, T120 HANDHELD THERMAL IMAGERS

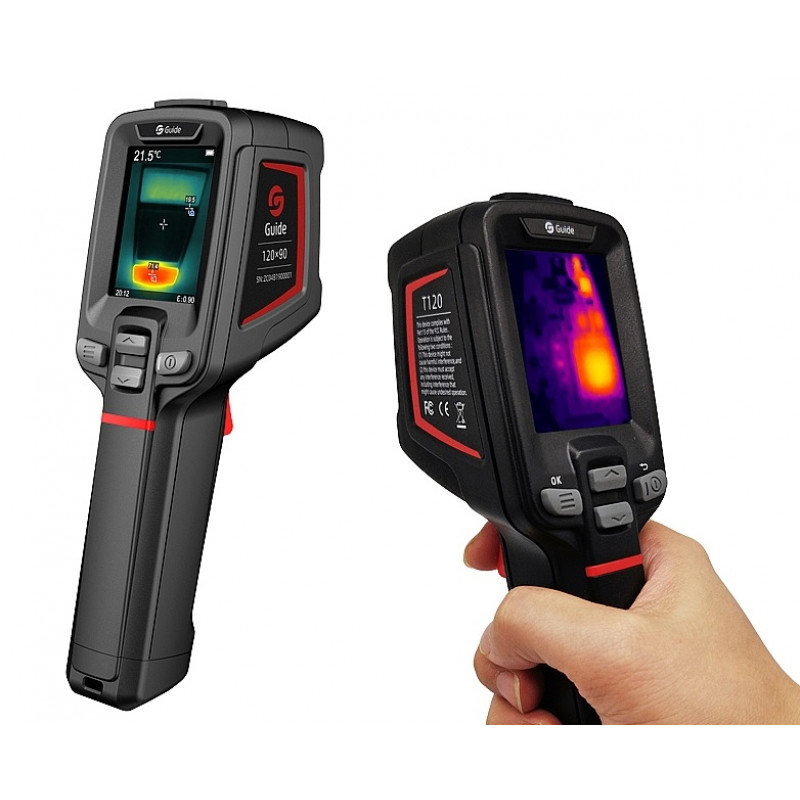

The T120 from Guide is an entry-level thermal imaging camera designed for portability and effective temperature measuring for building diagnostics, HVAC inspections, electrical systems checks and more.

Equipped with a 120x90 17µm 60mK NETD thermal sensor with 10,800 pixels of thermal data available to help quickly single out hot & cold spots within the cameras field of view.

Has a rugged, ergonomic body designed with a large handle and over-sized trigger for easy holding & usage. Drop tested up to 2m and has a protection rating of IP54.

Specifications:

  • Thermal Sensor: 120x90 17µm 60mK NETD
  • Focal Length: 2.28mm/F1.13
  • Frame Rate: 25/9Hz
  • Field of View: 50°x38°
  • Display: 320x240
  • Measuring Range: -20℃ to 150℃ (Auto switching)
  • Storage: TF Card (Standard 16GB, Up to 32GB)
  • Ports: USB-C-and TF card slot
  • Laser: Yes
  • Tripod Interface: Yes
  • Power: Internal Li-Ion battery
  • Operation Time: >8 hours (with WiFi Off)
  • Charge Time: >2.5 Hours
  • Operating Temperature: -10℃ to 50℃
  • Rated: IP54
  • Drop Tested: 2m
  • Weight: 350g
  • 194x61.4x76mm

Features:

  • Multiple colour pallets: White hot, iron red, hot iron, artic, rainbow 1, rainbow 2
  • Measurement Spot: Center spot
  • Measurement Area: 3 (Incl. max. & mix. temp.)
  • Auto Hot & Cold Spot Tracking: Yes
  • Full Screen Max. & Min. Temp. Alarm: Yes
  • Built-In 4GB memory (equal to 500 photos)
  • Built-In battery
  • Visible & thermal camera
  • PC IR Analysis software available
