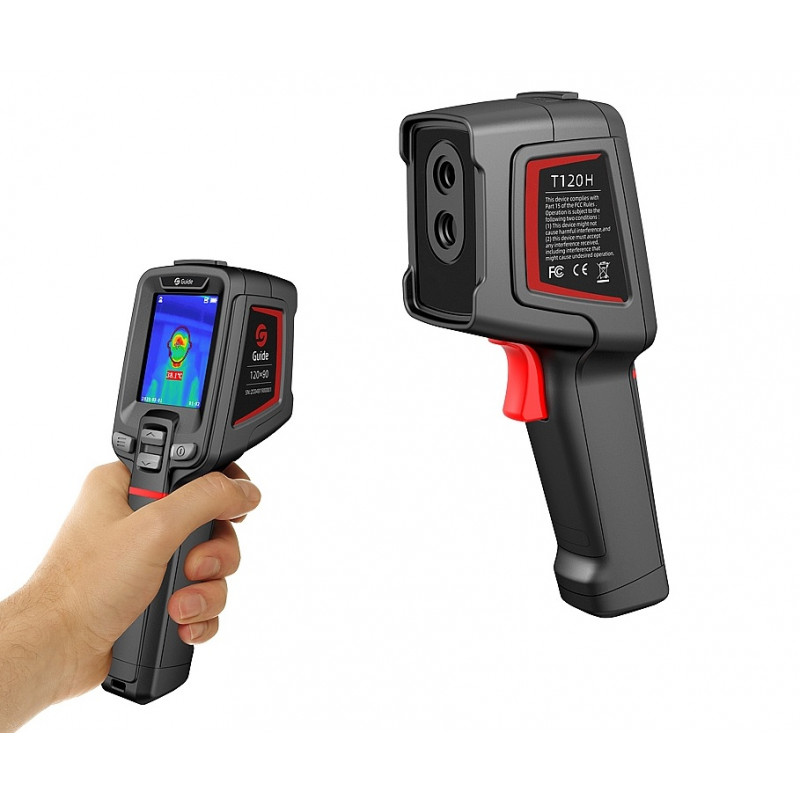

GUI-T120H, T120H HANDHELD THERMAL IMAGERS

GUI-T120H, T120H HANDHELD THERMAL IMAGERS

GUIDE T120H Fever Screening Thermal Camera is a fast temperature detection tool, which can be used to detect human temperature from a safe distance with accuracy of ±0.5℃.

It is an economical and practical thermal camera that could meet the needs of primary temperature screening well With two intelligent temperature screening modes, GUIDE T120H is not only suitable for flexible temperature screening, but also can be deployed at the entrances and exits of the public area, which makes it an ideal device to improve the efficiency of epidemic prevention and protect public health.

Specifications:

• Thermal Sensor: 120x90 17µm 60mK NETD
• Frame Rate: 25Hz
• Focal Length: 2.28mm/F1.13
• Field of View: 50°x38°
• Focus: Focus-Free
• Display: 2.4" 240x320 LCD
• Image Mode: IR image
• Filter Range: 20℃ to 50℃
• Accuracy: <±0.5℃ (Ambient temperature 25℃, target distance 1m, target temperature 32℃ to 42℃)
• Measurement Point: Central point
• Alarm: Over-temp alarm, support image & sound warning
• Storage Media: TF Card (max. 32GB)
• Image Format: Full radiometric (JPG) (120x90)
• Ports: USB-C, TF Card Slot
• Tripod Interface: Yes
• Battery: Rechargeable li-ion battery
• Operating Time: >8 hours
• Operating Temperature: -10℃ to 50℃
• Protection: IP54
• Drop Tested: 2m
• Weight: 350g
• Dimensions: 194x61.5x76mm
• Standard Accessories: Wristband, quick-start guide, charging adaptor, plug, USB cable, 16GB TF card

Features:

• Real-Time thermal imaging
• Tripod-Compatible
• Gives alert prompt when high-temperature has been detected
• Has photo capturing capabilities
• Ergonomic handheld style
• Wide temperature range
• Multiple colour modes
• Fast charging
• Straight-Forward interface
