HID (5395CG100) ThinLine II Proximity Reader, Classic Grey, Pigtail

HID (5395CG100) ThinLine II Proximity Reader, Classic Grey, Pigtail Connections

• The size of  most standard U.S. switch plates
• Available with Wiegand or Clock-and-Data interface
• Power requirements: 5-16 VDC
• Dimensions: 4.7 ̋ x 3.0 ̋ x 0.68 ̋ (11.9 cm x 7.6 cm x 1.7 cm)
• Read Range: up to 5.5 ̋ (14.0 cm)*
• Pigtail strip

Providing performance and reliability, HID’s attractive, unobtrusive ThinLine® II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure.

• Easily installed and maintained with the use of replaceable covers.
• Available with a Wiegand or Clock-and-Data interface.
• Provides high reliability, consistent read range and low power consumption.
• Features include multicolor LED and internal control or host control of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range performance.

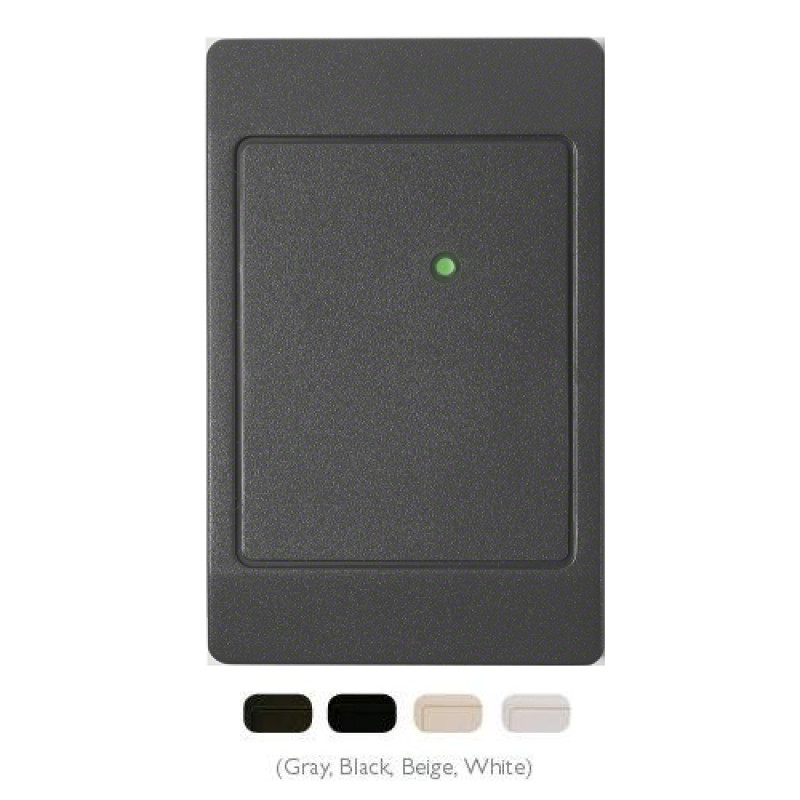

• Aesthetic design available in two cover designs and four colors to match any décor.
• Includes multilingual installation manual.

For more details, please refer with our attached datasheet.
