HM-9CW-IP, Medium Hybrid IP 940nm IR/WL Illuminator

HM-9CW-IP, Medium Hybrid IP 940nm IR/WL Illuminator

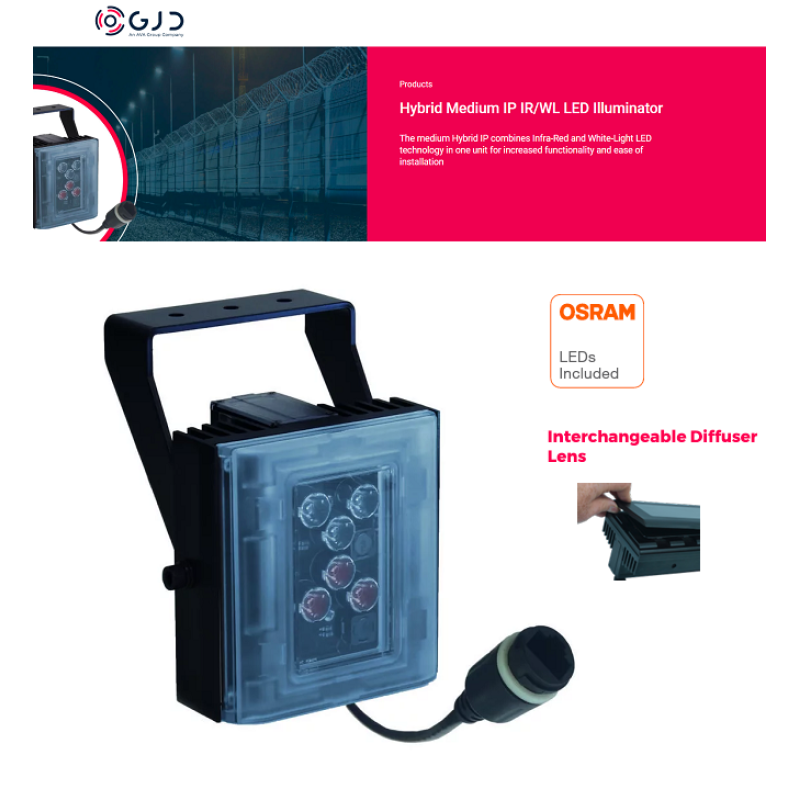

The medium Hybrid IP combines Infra-Red and White-Light LED technology in one unit for increased functionality and ease of installation.

In depth product detail

The GJD Hybrid provides Infra-Red light for monochrome night-time CCTV images, or White-Light for colour images. It is designed to smoothly integrate with IP cameras to provide event triggered lighting to illuminate and deter burglars.

Fully IP connectable, the Hybrid uses a remote user-friendly GUI. The installer can take complete control of the settings and programming at any time, from anywhere including power output, photocell sensitivity, and eco mode. If an intruder enters a restricted area on site, there is an option to activate the strobe function which provides an additional intruder deterrent.

Elliptical beam profiles allow more light to be delivered where it is needed, illuminating longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects. As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30°, 60 & 95° elliptical beam profiles.

Why use the GJD medium Hybrid IP IR/WL illuminator?

• Hybrid illuminator designed to provide dedicated lighting for IP cameras via PoE
• Illumination distances up to 101m (332’) (Infra-Red) and 68m (223’) (White-Light)
• CleanLITE self-cleaning lens coating technology
• High quality anodised aluminium heatsinks
• Direct integration with VMS systems
• IP66 weatherproof rating and IK09 impact protection rating
• Built-in photocell on/off
• Vibration/shock sensor
• IEEE02af compliant
• 5-year warranty
• Integrated GUI

Alternate Product Codes:

• HM-8CW-IP, Clarius HYBRID IP 850nm Medium IR/WL
