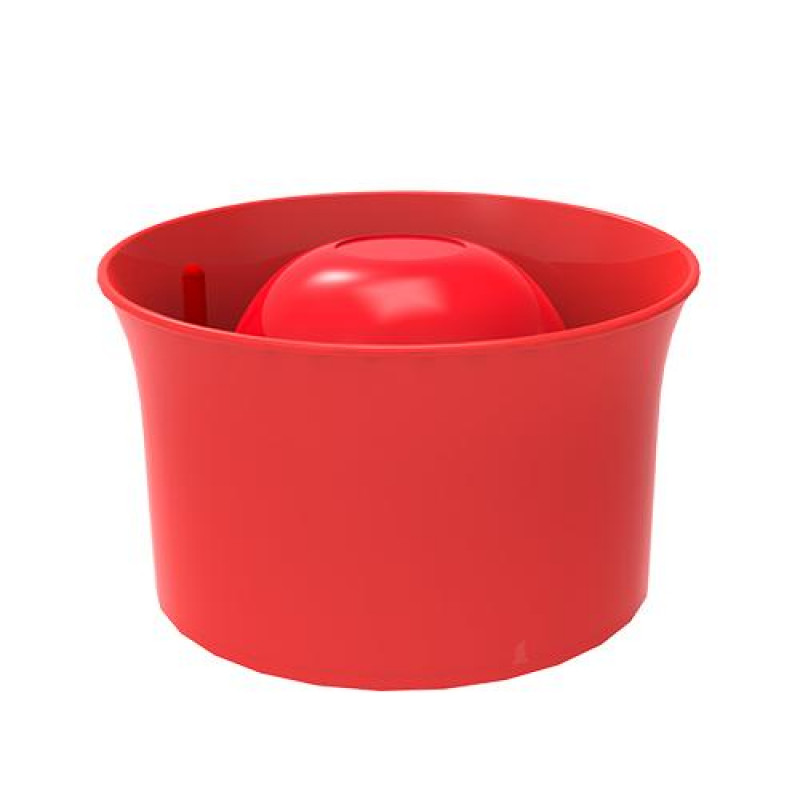

Hochiki, CHQ-WS2, Addressable Loop Powered Wall Sounder - Red

Hochiki, CHQ-WS2, Addressable Loop Powered Wall Sounder - Red

CHQ-WS2 is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBO-R/3(RED)) or the Isolator Base (YBO-R/SCI(RED)).

The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

Also incorporates an auto shutdown mode* which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.

*Dependent on control panel compatibility.

Key Features:

• Loop Powered
• Single Loop Address - addressed via the TCH-B100 Hand Held Programmer
• Variable Sound Output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
• Fits Hochiki Standard or Isolator Base
• Weatherproof Kit available
• 51 User-Selectable Tones (all tones EN54-3 compatible)
• Approved by LPCB & VdS

For more details, please refer with our attached datasheet.
