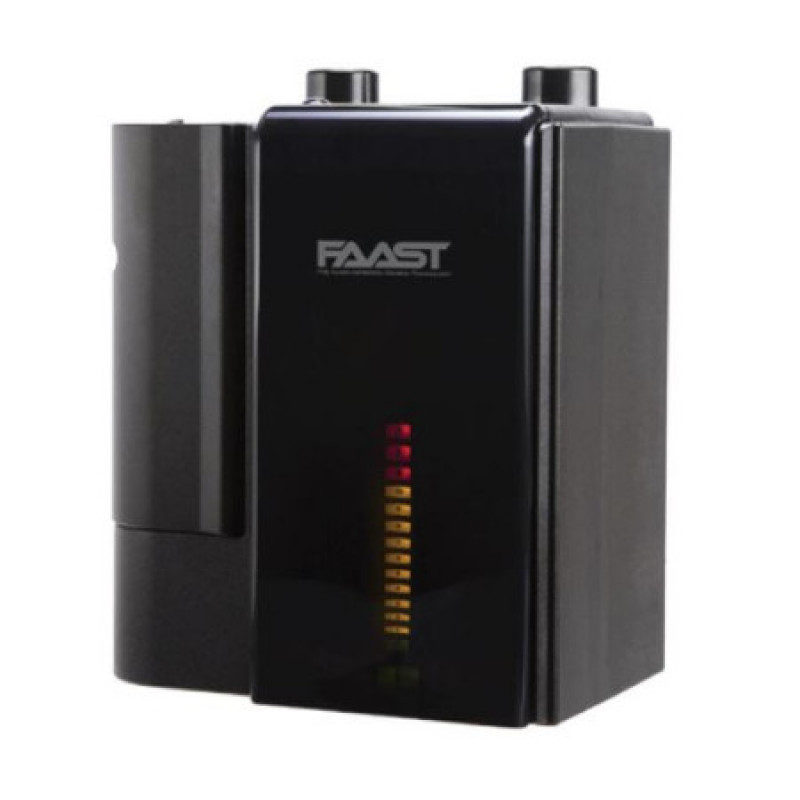

Honeywell (7100XE) FAAST XS High Sensitivity Laser Aspirating Unit

Honeywell (7100XE) FAAST XS High Sensitivity Laser Aspirating Unit

FAAST XS aspirating smoke detectors deliver highly accurate Very Early Warning Fire Detection for the smaller applications and offer extensive communication capabilities.

The FAAST XS aspirating smoke detector combines advanced particle separation with unique dual source optical smoke detection technology to provide highly sensitive Very Early Warning Fire Detection while providing enhanced immunity to false alarms. This technology enables FA AST XS to accurately detect incipient fire conditions up to Class A (according to EN54-20), in applications ranging from mission critical to harsh and extreme environments.

An installed FAAST XS device can administrate up to 170 m pipe length in standard coverage type applications and can be monitored in several different ways, including: Serial or TCP Modbus, Ethernet over a L AN or a direct connection, or via FA AST XS’s onboard USB.

When connected to a L AN, FAAST XS’s email server can provide email event notification to appropriate personnel. FA AST XS also communicates alarm and notifications via relays.

Key Features:

• Approved for use in Class A , B and C, according to EN54-20
• Provides Very Early Warning Fire Detection, as precise as 0.00095%/m obscuration
• Three alarm levels and three sensitivity modes provide application flexibility
• User configurable 3-speed fan, allowing for maximum coverage area or minimizing on current consumption
• Ultrasonic flow sensing and chamber airflow monitoring for precise system health information
• Dual source optical detection chamber with enhanced algorithms provide high sensitivity with greater immunity to nuisance conditions
• Patented particle separator removes large, non-fire particulate, ensuring chamber health and extending the life of the field-replaceable filter
• TCP and Serial Modbus for easy integration with building management system
• Easy configuration via USB interface, no external power needed
• Onboard Ethernet interface enables remote monitoring, configuration, web server and e-mail notifications
• Multilingual LCD user interface allows for detailed device information and interaction such as: Active faults, precise airflow monitoring, reset of airflow baseline, test/reset/isolate and more
• Configurable air flow fault thresholds and verification period
• Convenient wiring compartment
• Status-at-a-glance provides immediate alarm, fault and airflow status

For more details, please refer with our attached datasheet.
