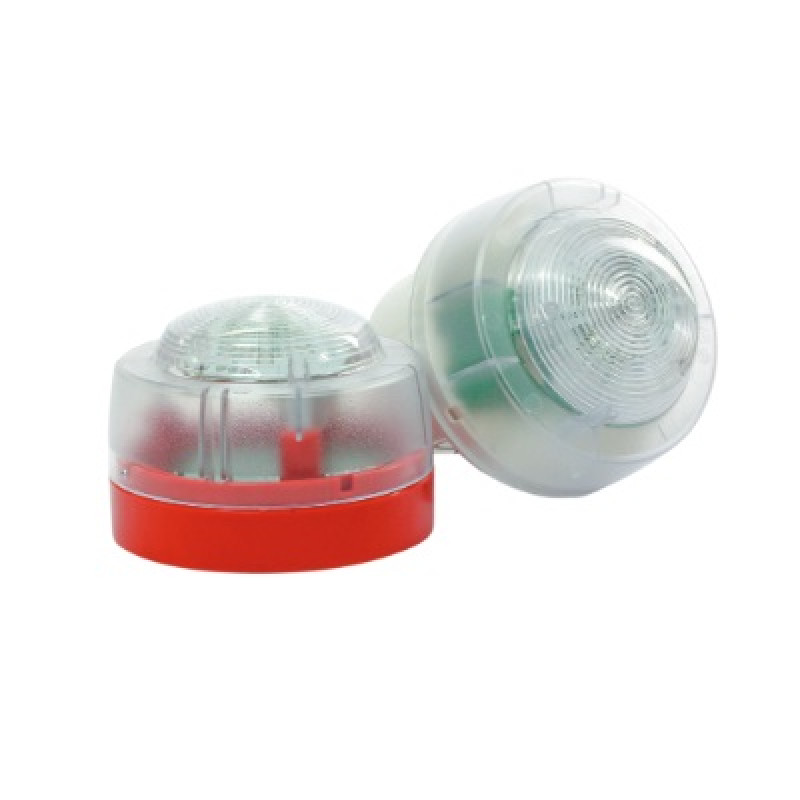

Honeywell (CWST-RW-W5) EN54-23 Approved Conv. Beacon - WH Flash/IP65

Honeywell (CWST-RW-W5) EN54-23 Approved Conv. Beacon - WH Flash/IP65

White flash IP65 deep base EN54-23 W and C class approved strobe with clear lens and red body. Deep base included.

Honeywell’s Conventional beacons feature high output LEDs, advanced optics and an innovative lens design, providing outstanding Omni-directional light coverage at low current draw.

Specifically designed for, and approved to meet EN54-23, the beacon delivers outstanding quality, reliability and long operational life.

Features & Benefits

Simple, Fast, Flexible Installation

• Omni-directional light coverage eliminates need for device orientation.
• Deep base option with multiple cable entries for flexible installation.
• Designed with full range of common fixing centres.
• Positive fit engagement and feedback of base with device for easy installation.

Universal Device

• Suitable for wall and ceiling mount applications.
• Range of installation and base options, for indoor and applications up to IP65.
• Operates on 12V and 24V systems, making the range suitable for fire & security applications.

Outstanding Performance

• Approved to EN54-23, C & W categories.
• Advanced optics ensures superior light coverage at low current draw.
• Synchronised flash exceeds EN54-23 standard.
• Choice of white or red light flash options.
• Soft start feature reduces power surges during system start-up.

Technical Specifications:

• Operating Voltage EN54-23: 12 to 29VDC
• Average Current Consumption: 26mA @ 29VDC
• Operating Temperature: -25°C to 70°C
• Relative Humidity: 93% ±3% non condensing
• Ingress Protection: IP21C – low profile base IP65 – deep base
• Dimensions (diameter x depth): 100mm x 72mm – low profile base 100mm x 97mm – deep base
• Body Colour: Red
• Cable Terminal Size: 0.5-2.5mm²
• Material: (lens) PC / (body) PC/ABS
