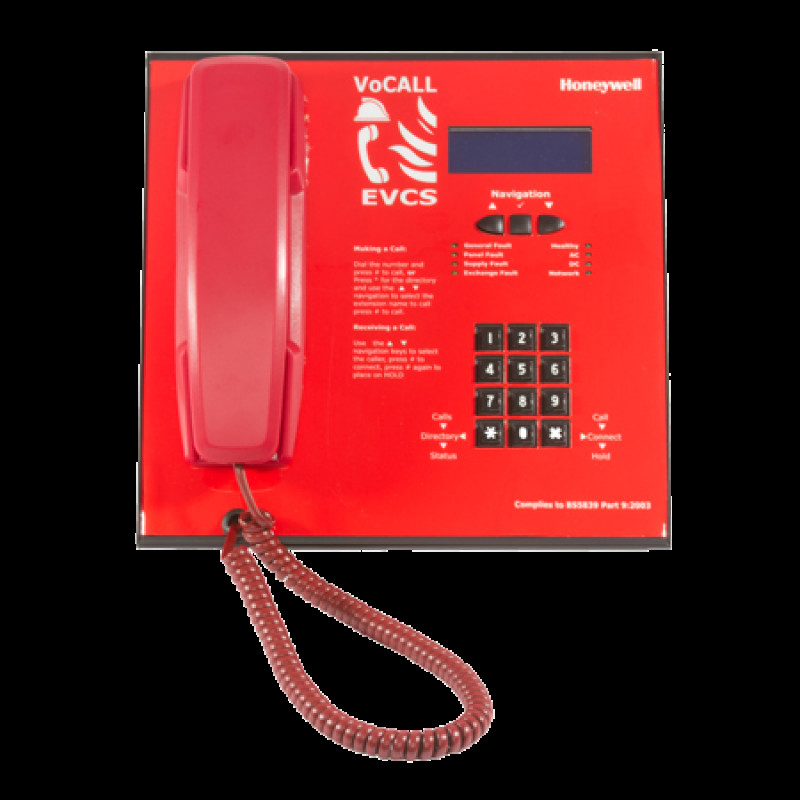

Honeywell (EVCS-MS) Network 8 Master Handset - Desk Mount

Honeywell (EVCS-MS) Network 8 Master Handset - Desk Mount

Control of EVCS is simplicity itself. The Network 8 System Master Handset allows swift identification of Outstations via its on-board directory and clear backlit display. EVCS Network 8 is a system for larger Disabled Refuge and Emergency telephone installations.

Its distributed loop architecture provides a competitive system which require from 8 to 256 communication points as well as multiple control locations.

The backlit display shows the calling outstation name in plain text (programmable). Calls can be made to outstations by either selecting the calling outstation, dialling the number of a required outstation or choosing the required outstation name from a text-dialling directory.

This is supplied as a metal console suitable for desk mounting.

Key Features:

• Multiple handsets with up to 8 distributed throughout the system
• Up to 160 outstations via 20 Network Exchange units with V4.21 software
• Up to 256 outstations via 32 Network Exchange units with V5.0 software
• 4 line x 20 character backlit display
• Outstation text information held in handset directory
• May be used as combined or separate Disabled Refuge and Fire Telephone System
• Global configuration from Master Handset
• All Call feature allows easy testing and commissioning
• Remotely powered from network exchange unit
• Full duplex communications with Outstations

For more details, please refer with our attached datasheet.
