Honeywell (MI-D240CMO) Single 240VAC/5A Output Relay Module

Honeywell (MI-D240CMO) Single 240VAC/5A Output Relay Module

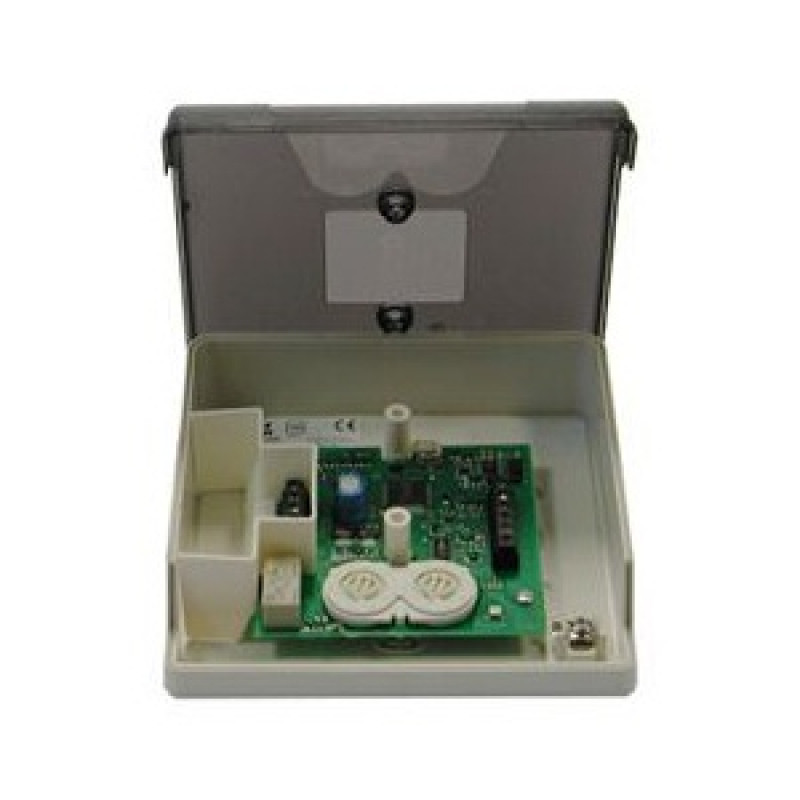

Output Control Module, 240Vac relay contact rating complete with surface enclosure. The MI-D240CMO provides two (1 x N.O. 1 x N.C.) 250Vac (nominal 230Vac), 5Amp contact outputs. The MI-D240CMO is provided complete with a surface mounting back box.

Specifications:

• Dimensions (W x H x D): 94 mm x 93 mm x 23 mm
• Operating voltage: 15 to 30VDC peak
• Operating temperature: -20 deg C to +60 deg C
• Non-condensing relative humidity: 0% to 95%
• Current consumption: -275 μA @ 24 VDC (without comm.) / -445 μA @ 24 VDC (one comm. every 5 sec. with LED blink enabled).
