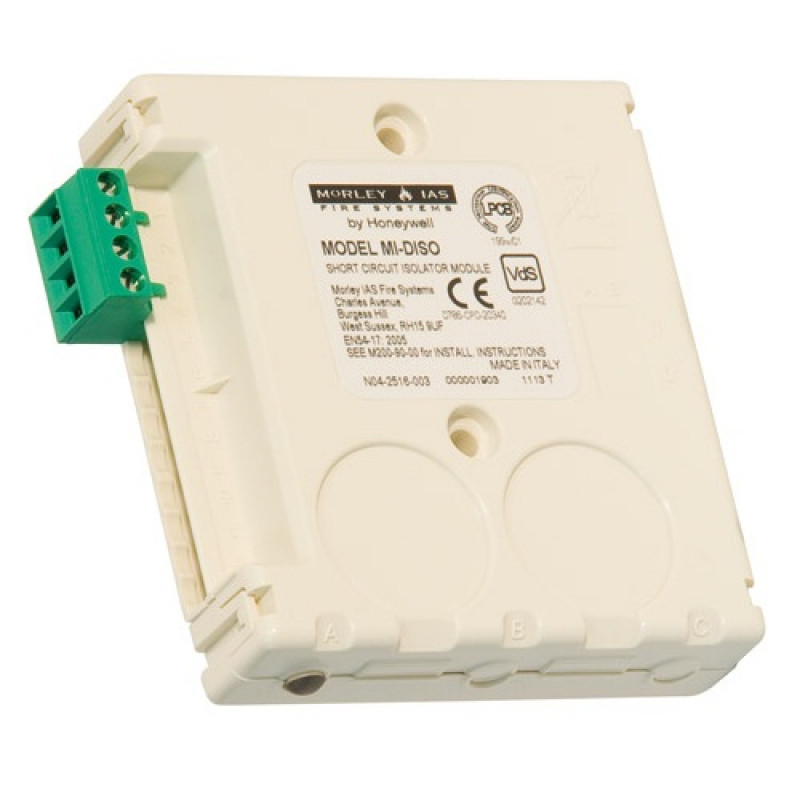

Honeywell (MI-DISO) Single Isolator Module

Honeywell (MI-DISO) Single Isolator Module

Loop isolation module. Requires M200E-SMB for surface mounting or M200E-DIN for mounting to DIN rails.

Short circuit isolator module for MorleyIAS analog system for loop protection. The isolator module works by opening the communications loop in the case of detecting a short circuit in the line or voltage in the lower than 4 V, leaving only the area between two insulating modules out of service. Its installation is recommended every 20 detectors or addressable modules. It has a two-color LED (green: flashes in normal conditions, yellow: fixed when a short circuit is detected). Connection through removable terminals (up to 2.5mm2 section).

Multiple mounting possibilities: On the surface using M200SMB or SMB6-V0 enclosure, on DIN rail using M200E-DIN adapter or on panel using M200PMB support.

Specifications:

• Dimensions in mm: 94 width 93 high 23 depth
• Approved according to: EN54-17
