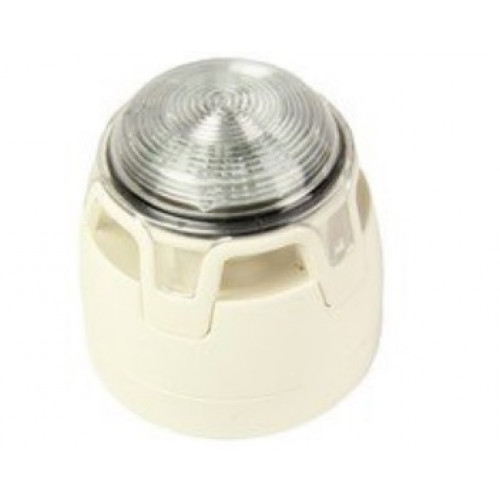

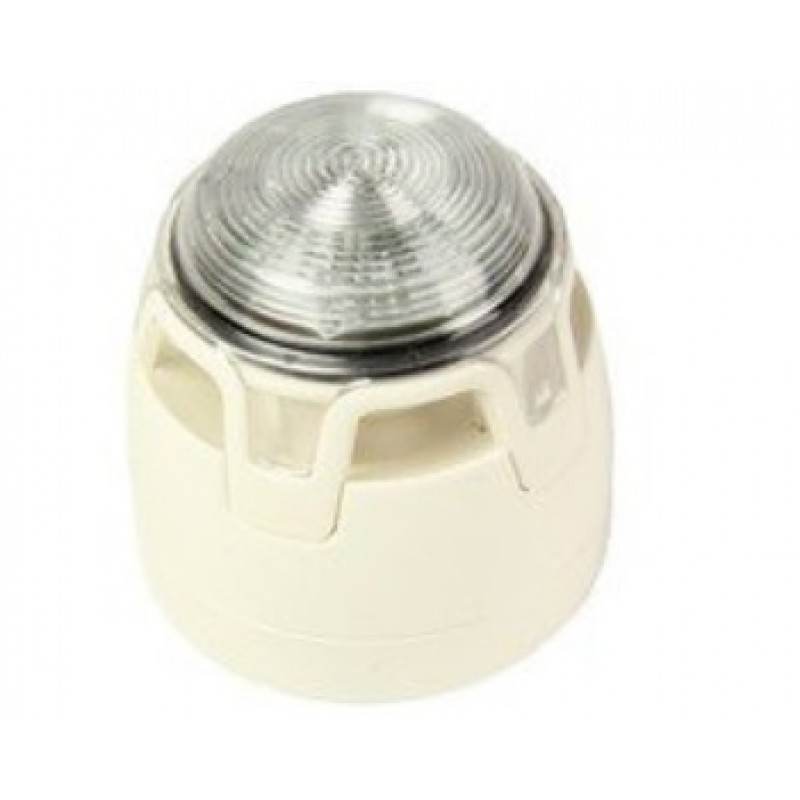

Honeywell (CWSS-WW-W5) White Body with Cool White Flash Alarm
- Brand:Honeywell
- Product Code:CWSS-WW-W5
- Availability:Please Call or Email Us to Check Availability
Honeywell (CWSS-WW-W5) White Body with Cool White Flash Alarm
The acoustic and optical part of the alarm transmitter is activated simultaneously.
Key Features:
- With 32 tunable tones incl. Key in accordance with DIN 33404 Part 3.
- All 32 tones are permitted and are controlled synchronously.
- 2 volumes (medium, high) are adjustable.
Specifications:
- Operating voltage : 12 to 29 VDC.
- Operating current: 60.1 mA - 24 VDC (DIN sound & flash).
- Acoustic alarm device :
- Sound pressure level : 98.7 dB (A) - 24 VDC (DIN Tone High).
- Sound pressure level : 98.1 dB (A) - 24 VDC (DIN-tone medium).
- Optical alarm device :
- Color housing / socket : know white.
- Color dome : clear.
- Color flash : White.
- Flash frequency: 0.5 Hz.
- Signaling range : W-2,4-8,9 (190 m³).
- Signaling range : C-3-10 (236 m³).
- Signaling range : C-6-10 (471 m³).
- Operating temperatur : -25 ° C to + 70 ° C.
- rel. Humidity : 10% to 93% (non-condensing).
- Dimensions (Ø x H) : 100 x 122 mm.
- Material : Fire retardant PC / ABS.
- protection : IP 65.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
