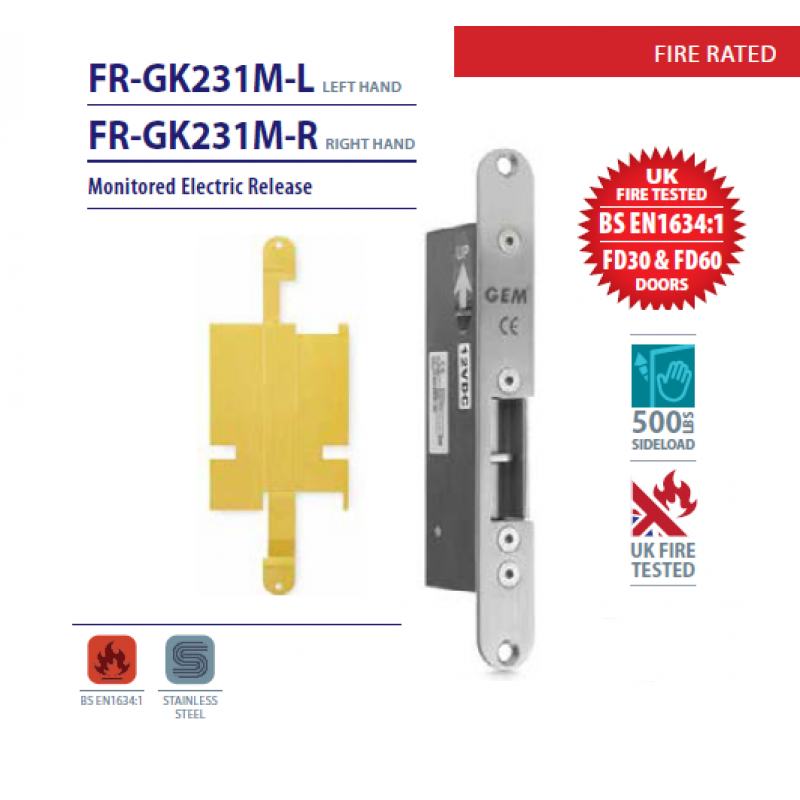

ICS (FR-GK231-M-R) Right hand Monitored Electric Release, Fire Tested

ICS (FR-GK231M-R) MONITORED ELECTRIC RELEASE FD30 + FD60 Rating Operating voltage 12 or 24Vdc Stainless Steel Right hand Fail-Safe 1500lbs holding force 500lbs side-load Fire tested: BS EN1634:1 1 Hour UK fire certificate

• Operating voltage 12 or 24Vdc
• Stainless Steel
• Monitored
• Right hand
• Fail-Safe
• 1500lbs holding force
• 500lbs side-load
• 1 Hour UK fire certificate

Description

• Voltage tolerance: ±20%.
• Current draw: 280mA at 12Vdc, 140mA at 24Vdc (at temperature 20°C).
• Operating temperature: -10~45°C (14 to 131°F).
• Lock’s surface temperature: Current temperature ±20% (when power is on).
• Humidity: 0~95% non-condensing.
• Life rating of solenoid valve: 250,000 cycles.
• Keeper width: 48mm.
• Latch throw: 15mm (GK233: 8mm).
• 1500lbs jaw strength pulls testing.
• Weight: 673g.
• Dimensions: 141 × 40 × 23 mm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
