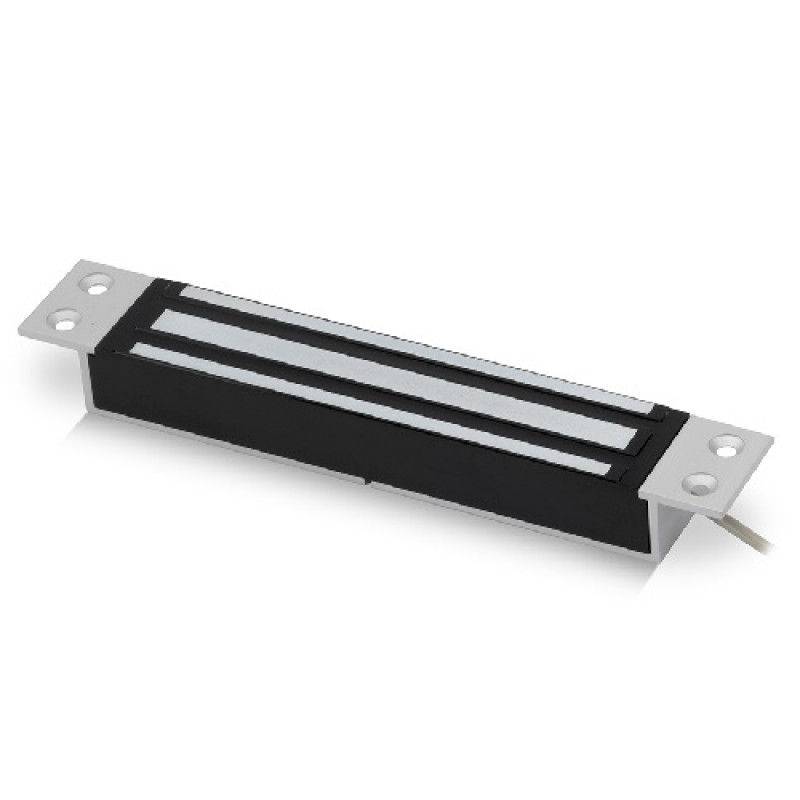

ICS, U10000R, Mini Mortice Magnet Monitored
- Brand:ICS
- Product Code:U10000R
- Availability:Please Call or Email to Checkout
ICS, U10000R, Mini Mortice Magnet Monitored
Monitored Mortice Magnet
Key Features:
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Holding force up to 600lbs (272Kg)
- Electro-less nickel plated armature
- Mortice mounting
Specification:
- Voltage tolerance: ±10%.
- Current draw: 480mA at 12Vdc, 240mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Humidity: 0~95% non-condensing.
- Aluminium housing, nickel plated armature.
- Dimensions: 228 × 38 × 27 mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
