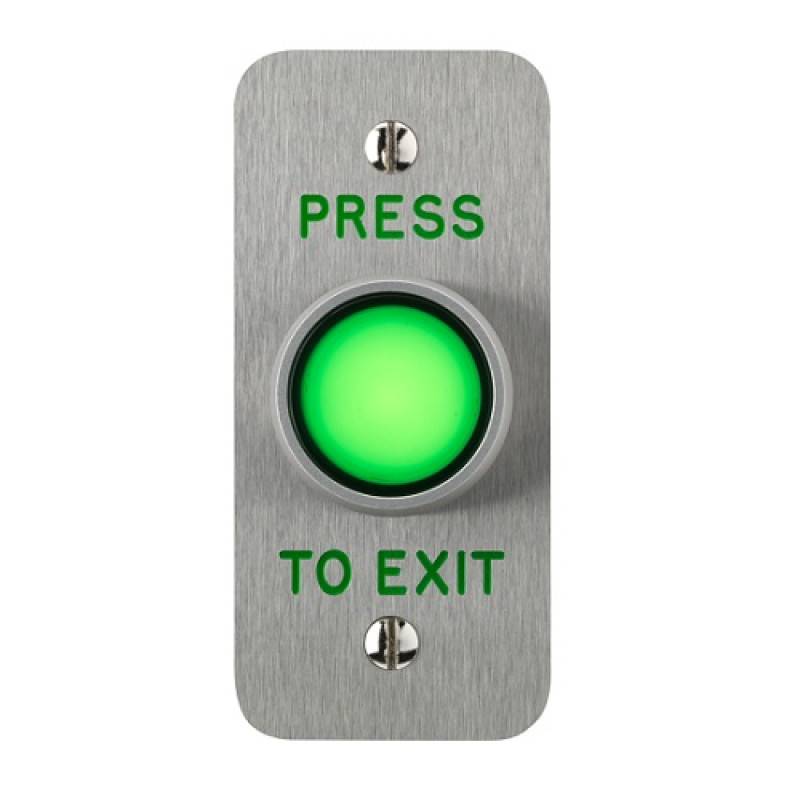

3E0650-1NS-E-PTE, Illuminated Button Narrow Stile SSS "Press to Exit"

3E0650-1NS-E-PTE, Illuminated Button Narrow Stile SSS "Press to Exit"

  • Brand:3E Security
  • Product Code:3E0650-1NS-E-PTE
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


3E0650-1NS-E-PTE, Illuminated Button Momentary Narrow SSS IP67 Engraved "Press to Exit"

Key Features:

  • IP67 Ingress protection
  • Momentary contact
  • 1 x Normally Open & 1 x Normally Closed Circuit
  • 12Vdc Independent illumination
  • -25°C to +55°C
  • Engraved legend

Technical Specifications:

ELECTRICAL:

  • Insulation Resistance: > 7MΩ between the open contacts at 500 VDC, as per EN IEC 61058-1-15
  • Contact Resistance (initial) Life: New state ≤ 50mΩ as per DIN IEC 60512-2-4, 2 million Cycles of operation
  • Electrical strength: 3000VAC, 50Hz, 1min. between all terminals and earth, as per EN IEC 61058-1-15

MECHANICAL:

  • Operating Force: 6N
  • Contact Bounce: ≤ 5ms
  • Travel: 3mm

ENVIRONMENTAL:

  • Operating Temperature Range: -25° to +55°C
  • Ingress Protection: IP 67
  • Contact Material: Gold plated silver
  • Housing: Diallylphthalate DAP, Polyamide 66, Polysulfone, heat-resistant and self-extinguishing
  • Actuator Material: Polyamide
  • Shock: max. 150m/s², pulse width 11ms, 3-axis, as per EN, IEC 60068-2-27

MATERIAL:

  • Plate material: Grade 304 DP1 stainless steel (2mm)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
