3E0650-GB-PTE, Illuminated button (12Vdc), momentary, IP66 surface mount (grey/black), PTE
- Brand:3E Security
- Product Code:3E0650-GB-PTE
- Availability:Please Call or Email Us to Check Availability

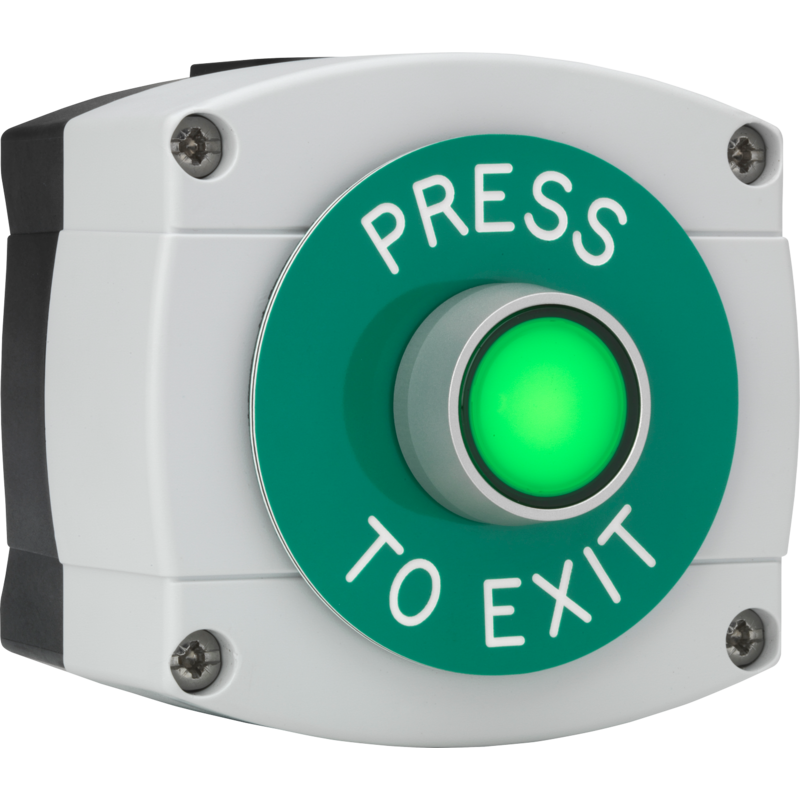

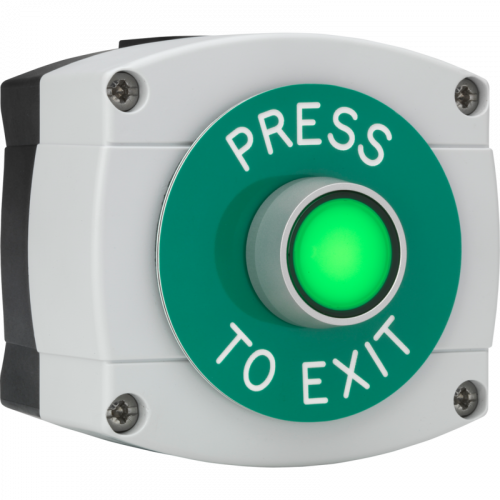

3E0650-GB-PTE, Illuminated button Momentary, Surface Mount, IP66 Rated Enclosure, Grey/Black c/w legend disc "Press to Exit"
SURFACE MOUNT PUSH BUTTONS
- IP66 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- High impact
- RoHS compliant
- M16/20 Pre-moulded conduit knockouts
SPECIFICATION:
ELECTRICAL
| Contact Resistance (initial) | New state ≤ 50mΩ as per DIN IEC 60512-2-4 |
| Life | 2 million Cycles of operation |
| Electrical strength | 3000VAC, 50Hz, 1min. between all terminals and earth, as per EN IEC 61058-1-15 |
| Insulation Resistance | > 7MΩ between the open contacts at 500 VDC, as per EN IEC 61058-1-15 |
MECHANICAL
| Operating Force | 6N |
| Contact Bounce | ≤ 5ms |
| Travel | 3mm |
ENVIRONMENTAL
| Ingress Protection | IP 67 |
| Contact Material | Gold plated silver |
| Actuator Material | Polyamide |
| Operating Temperature Range | -25° to +55°C |
| Shock | max. 150m/s², pulse width 11ms, 3-axis, as per EN IEC 60068-2-27 |
| Housing | Diallylphthalate DAP, Polyamide 66, Polysulfone, heat-resistant and self-extinguishing |
MATERIAL
| Plate material | Robust cross polymer enclosure |
For more details, please refer with our attached datasheet.
