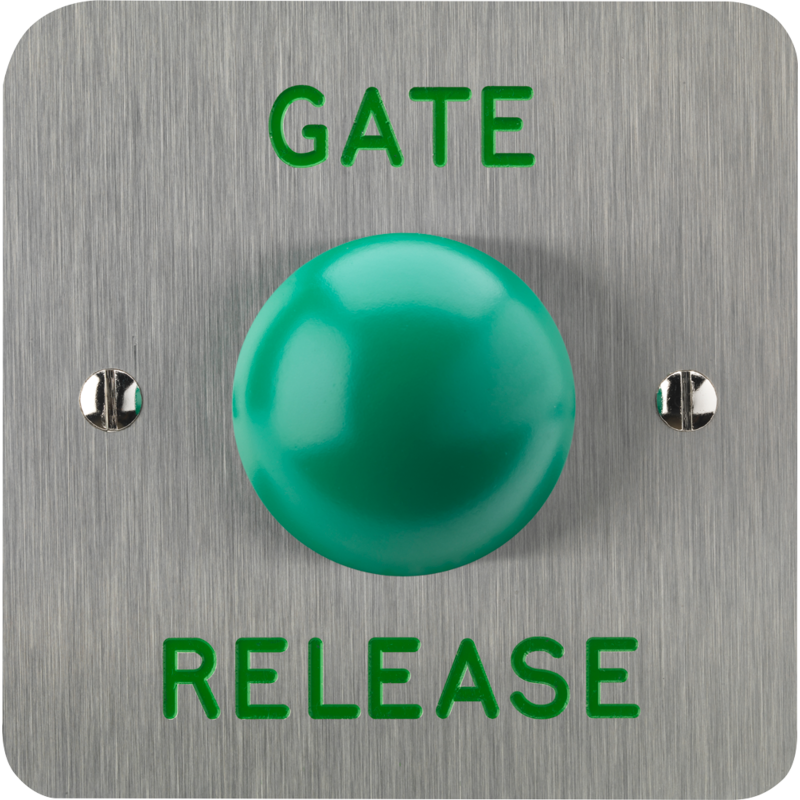

3E0657-1-E-GR, HIGH IMPACT PUSH BUTTON 1 Gang SSS Engraved "Gate Release"

3E0657-1-E-GR, HIGH IMPACT PUSH BUTTON 1 Gang SSS Engraved "Gate Release"

  • Brand:3E Security
  • Product Code:3E0657-1-E-GR
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


3E0657-1-E-GR, High Impact Push Button 1 Gang SSS Engraved "Gate Release" IP67 Ingress protection Momentary contact 1 x Normally Open & 1 x Normally Closed Circuit Anti-rotational mounting

HIGH IMPACT PUSH BUTTON

  • IP67 Ingress protection
  • Momentary contact
  • 1 x Normally Open & 1 x Normally Closed Circuit
  • Anti-rotational mounting
  • Silver contacts
  • -40°C to +135°C operating range
  • Impact rating: 20J

SPECIFICATION:-

ELECTRICAL
Life 100,000 Cycles @ 20°C, 50,000 Cycles @ 70°C
  1GΩ
Dialectic Strength 1000V RMS
Contact Resistance (initial) 25mΩ
MECHANICAL
Travel 2.5mm
Panel Thickness 6mm maximum
Operating Force 7N
Life (nominal) 2 x 10 cycles
Contact Bounce 5ms
ENVIRONMENTAL
Terminal Material 5µm bright acid tin plate, nickel
Shock 50g
Operating Temperature Range -40°C to +125°C
Ingress Protection IP67
Impact Rating 20J
Contact Material Fine silver
Body Material Zinc alloy
Actuator Material Zinc alloy
MATERIAL
  Grade 304 DP1 stainless steel (2mm)

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
