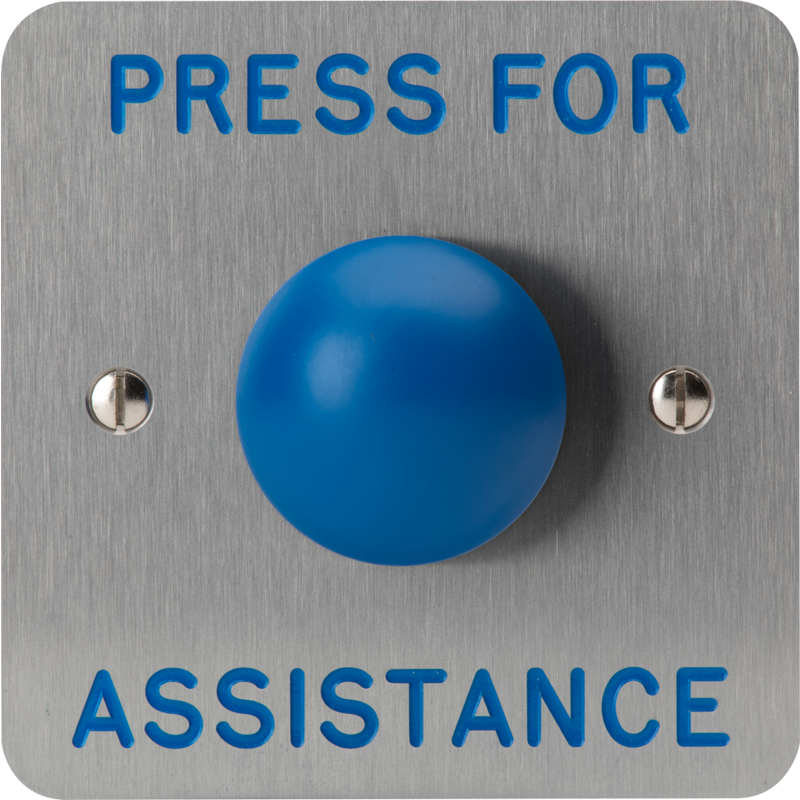

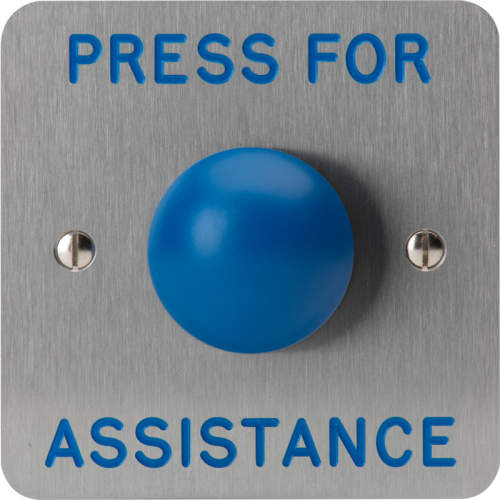

3E0657B-1-E-PFA, HIGH IMPACT PUSH BUTTON 1 Gang SSS Engraved "Press for Assistance"
- Brand:3E Security
- Product Code:3E0657B-1-E-PFA
- Availability:Please Call or Email Us to Check Availability
3E0657B-1-E-PFA, High Impact Push Button 1 Gang SSS Engraved "Press for Assistance" IP67 Ingress protection Momentary contact 1 x Normally Open & 1 x Normally Closed Circuit Anti-rotational mounting
HIGH IMPACT PUSH BUTTON
- IP67 Ingress protection
- Momentary contact
- 1 x Normally Open & 1 x Normally Closed Circuit
- Anti-rotational mounting
- Silver contacts
- -40°C to +135°C operating range
- Impact rating: 20J
SPECIFICATION:-
ELECTRICAL
| Life | 100,000 Cycles @ 20°C, 50,000 Cycles @ 70°C |
| 1GΩ | |
| Dialectic Strength | 1000V RMS |
| Contact Resistance (initial) | 25mΩ |
MECHANICAL
| Travel | 2.5mm |
| Panel Thickness | 6mm maximum |
| Operating Force | 7N |
| Life (nominal) | 2 x 10 cycles |
| Contact Bounce | 5ms |
ENVIRONMENTAL
| Terminal Material | 5µm bright acid tin plate, nickel |
| Shock | 50g |
| Operating Temperature Range | -40°C to +125°C |
| Ingress Protection | IP67 |
| Impact Rating | 20J |
| Contact Material | Fine silver |
| Body Material | Zinc alloy |
| Actuator Material | Zinc alloy |
MATERIAL
| Grade 304 DP1 stainless steel (2mm) |
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
